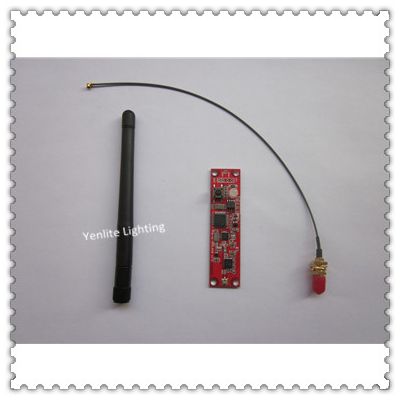

Wireless DMX Trancerver PCB-503PCB

Model No.: YL-503PCB
Model Name: Wireless DMX Transmitter/Receiver PCB-503PCB

Technical Specifications:

1. Small size, easy to suit for interior of accessed lighting.
2. Single key to operate, tricolor LED displaying.
3. Transmitting standard DMX512 protocol data of console, also can transmit lighting
  and lighting DMX512 protocol data.
4. 126 channels automatical jumping frequency, high anti-jamming ability to ensure
   working reliability.
5. 7 groups ID code settable, User can use 7 groups individual wireless net without any
   interfere each other in the same place.
6. Input voltage: 5VDC
7. Work frequency section: 2.4GHz ISM band,126 channels frequency section.
8. Max transmitting power rate: 20dBm
9. Receiver sensitive: -94dBm
10.Signal port: RS485 or CPU series port AURT
