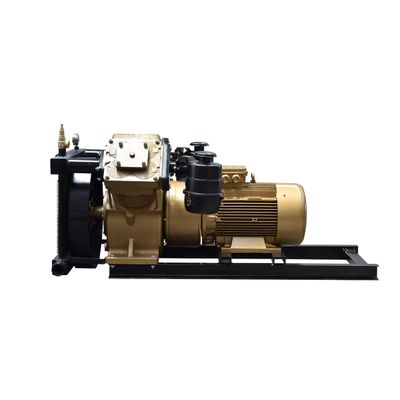

G220-2 Air Compressor with Electric Motor

G220-2  AIR COMPRESSOR with ELECTRIC MOTOR
Standard Features :
Model-G220-2 : Piston type
Capacity : 10200 lt/minute air flow
Working Pressure : 2.5 – 3.5 bar
Discharge Air Flow Rate : 10.2 m3/min (610 m3/hr) at 2.0 bar g (29 psi g)
Cylinders:   2x220 mm
Piston Stroke:  90 mm
Cooling:          Air cooling
Cement Discharge time :  1.8 m3/min
Speed : 1500 RPM
Final Temperature :  50 – 55 Deg C
Engine / Motor :   Electric motor 30 kW, 240- 480 V, 50Hz-60Hz, 1500 rpm (WAT ARCELIK)
Weight of Complete Unit : 540 kg.
Dimensions : 1687 x 923 x 824 mm
Market Usage :
This reciprocating piston type air compressors is designed for perfectly use on cement bulkers and cement silos, at cement plants / cement factories, concrete ready mix plants, crushers, interlock factories and all powder chemicals manufacturing plants where the powder materials being moved and transported using air pressure / air flow. The materials can be moved by using this type of compressors are dry cement, lime, gypsum, sand, dolomite, bentonite, barite, ash, powder chemicals, etc...
General Specs:
The G220-2 Air Compressors direct coupled with 4 cylinder air cooled electric engine is independent working unit which gives flexible movement of tractor head and bulker unit.
High efficient special developed direct coupled system for pneumatic transportation.
Vibration free work by special balanced crank.
The whole unit is assembled on a strong chassy frame and ready to be installed on bulker trailer or structure.
The perfectly designed air cooled system keep the unit working on extreme weather conditions with optimum performance.
The rubber mountings should be fixed between the main frame and the trailer chassy in order to provide vibration tolerance.
The Standard Package:
The G220-2 Air Compressor comes with following standard equipment:
Electric motor 30 kW, 240- 480 V, 50Hz-60Hz, 1500 rpm (WAT ARCELIK)
Control Panel
Strong chassy frame
Oil type air filters
Safety releif valve set at 2.5 bar(g)
Instructions and maintenance procedure
