Product Description

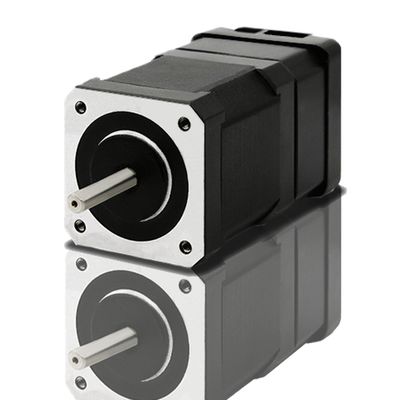

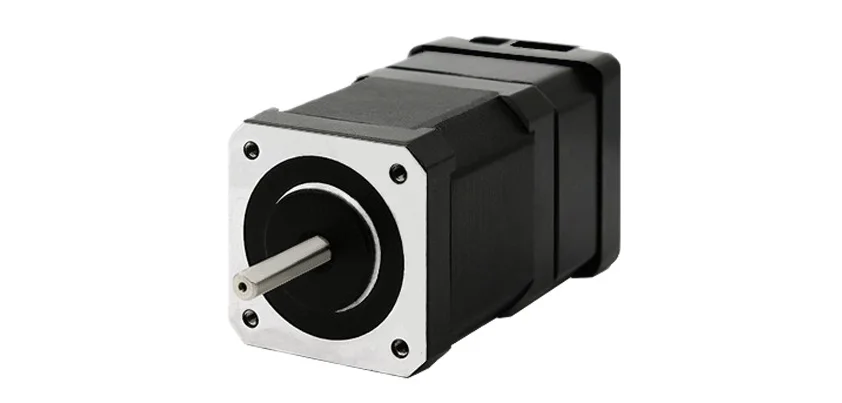

Our drivers and controllers can be installed on the rear cover of 42/57/86 motor. The design of integrated stepper motor is realized simply. User can install encoder to achieve closed-loop control. On the other hand, user can not install encoder to achieve open-loop control. Assembly is simple and flexible. There are very few connecting lines, more space saving. It is easy to realize distributed control and remote monitoring for users. As shown in the following figure, PMC007C3SE controller and encoder is installed on the rear cover of 42 motor, to achieve close-loop control with reducer.

Functional characteristics

• Stepper motor + PMC007C3SE driving controller +  encoder
• Compact structure, saving complicated wiring, saving space
• High-precision, close-loop control with encoder
• Accurate positioning, recording step position, without losing step
• Easy to install, easy to distributed control, support a variety of control method

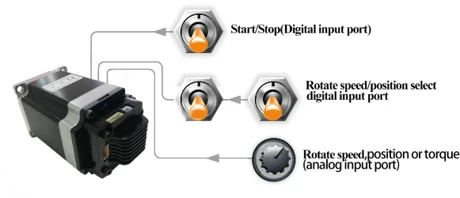

 Multiple Control Modes

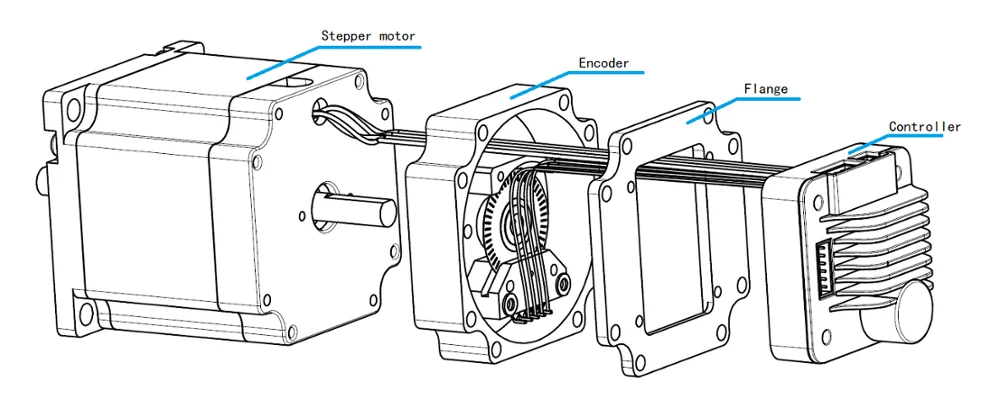

Modular design

Dimensions(Unit:mm)
