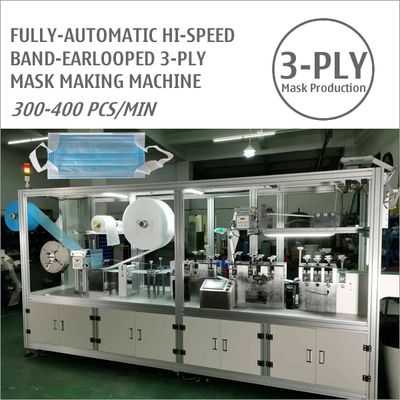

High-Speed Band-Earlooped 3-Ply Medical Surgical Face Mask Making Machine

Fully-automatic High-Speed Band-Earlooped 3-Ply Medical Surgical Face Mask Making Machine

This machine for producing medical/surgical face masks and it makes 3-to-4-ply masks automatically by the following procedures.
1) Unwinding, feeding non-woven fabrics and nosepiece;
2) Cutting nosepiece, wrinkling and laminating fabrics by welding;
3) Cutting elastic fabric as band-earloops and welding them;
4) Cutting and delivering masks out.

The above process is done automatically and continuously by PLC.

Features:
1) Fully-automatic.
2) High-speed and speed adjustable.
3) Multiple ultrasonic systems employed produce reliable welding.
4) Easy to use. The touch-screen control system makes operation easy.
5) Alarm when the fed material breaks or is in short.
6) A counting system makes the quantity of produced masks visible and make it possible to set the mask quantity of each stack for the conveyors.

Specifications:
Power: 8 kW
Capacity: 300-400 pcs/min
Weight: 800 kg
Dimensions: 4700(L)*1000(W)*2080(H)mm
