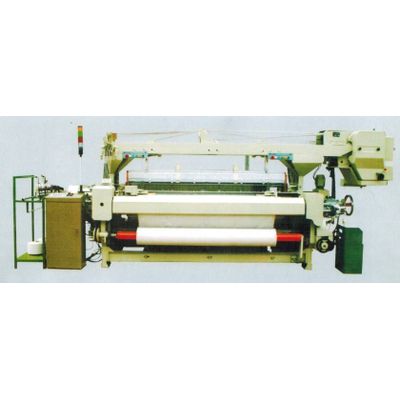

Flexible Rapier Loom(HQ988)

1.Let-off mechanism

It's an active continuous let-off mechanism, consisting of two parts, the friction type stepless speed changing mechanism and the warp tension feedback mechanism, which can work simultaneously with the pick finder system and keep a constant warp tension.

2.Warp stop motion

It is controlled by a 6-row contact-type electronic broken warp detector.

3.Weft selection

The weft selection is carried out by the dobby levers thru a connecting wheel.

4.Dobby shedding device

It's equipped with a high speed dobby machine and 16 heald frames, which is suitable for weaving plain, twill, small jacquard fabrics made of cotton, wool, hemp and silk.

5.Transmission mechanism

To adopt a 50kg-capacity electromagnetic clutch to control the full machine, which provides a prompt start by enabling the rotation of the crank directly.

6.Automatic pick finder

This device can reverse the weaving pick upon broken weft meantime, reverse the let-off and take-up mechanism via the crank, which reduces the weft bars caused by high and low weft densities, improves the fabric quality and provides a convenient operation.

7.Wefting mechanism

It adopts a flexible rapier wefting motion with center connection. The griper transmission wheel, the gripper and the belt are made of high intensity, light weight and wearable materials, which are suitable for high speed working.

8.Broken weft detection mechanism

It adopts the piezoelectric sensor to detect the broken or missing weft and stop the loom promptly and send the signal to the automatic pick finder for pick finding .

9.Friction type super big fabric roller

It uses a separate fabric roller, the rolling tension is controlled by adjusting the pressing spring.

10.It adopts separate continuous fabric roller, with a max rolling diameter of 500mm.

Reed width: 200/230/280/300/340CM.

Speed: (200CM)230-250RPM,(230CM)200-230RPM,(280CM)170-200RPM,(300CM)150-180RPM,(340CM)140-160RPM.

Motor Power:2.2KW.

Shedding device: Electronic dobby pattern attachment optional.

Filling insertion mecheanism:6-lever filling insertion mechanism.

Beating mechanism:4-lever short connectors beating mechanism.

Weft selecting method: 6 colors weft selector.

Let-off mechanism: continuous let-off.

Pick finding mechanism: automatic pick finding.

Machine control: by micro-computer control panel with LCD display.

1.Let-off mechanism

It's an active continuous let-off mechanism, consisting of two parts, the friction type stepless speed changing mechanism and the warp tension feedback mechanism, which can work simultaneously with the pick finder system and keep a constant warp tension.

2.Warp stop motion

It is controlled by a 6-row contact-type electronic broken warp detector.

3.Weft selection

The weft selection is carried out by the dobby levers thru a connecting wheel.

4.Dobby shedding device

It's equipped with a high speed dobby machine and 16 heald frames, which is suitable for weaving plain, twill, small jacquard fabrics made of cotton, wool, hemp and silk.

5.Transmission mechanism

To adopt a 50kg-capacity electromagnetic clutch to control the full machine, which provides a prompt start by enabling the rotation of the crank directly.

6.Automatic pick finder

This device can reverse the weaving pick upon broken weft meantime, reverse the let-off and take-up mechanism via the crank, which reduces the weft bars caused by high and low weft densities, improves the fabric quality and provides a convenient operation.

7.Wefting mechanism

It adopts a flexible rapier wefting motion with center connection. The griper transmission wheel, the gripper and the belt are made of high intensity, light weight and wearable materials, which are suitable for high speed working.

8.Broken weft detection mechanism

It adopts the piezoelectric sensor to detect the broken or missing weft and stop the loom promptly and send the signal to the automatic pick finder for pick finding .

9.Friction type super big fabric roller

It uses a separate fabric roller, the rolling tension is controlled by adjusting the pressing spring.

10.It adopts separate continuous fabric roller, with a max rolling diameter of 500mm.

Reed width: 200/230/280/300/340CM.

Speed: (200CM)230-250RPM,(230CM)200-230RPM,(280CM)170-200RPM,(300CM)150-180RPM,(340CM)140-160RPM.

Motor Power:2.2KW.

Shedding device: Electronic dobby pattern attachment optional.

Filling insertion mecheanism:6-lever filling insertion mechanism.

Beating mechanism:4-lever short connectors beating mechanism.

Weft selecting method: 6 colors weft selector.

Let-off mechanism: continuous let-off.

Pick finding mechanism: automatic pick finding.

Machine control: by micro-computer control panel with LCD display.

HQ988
