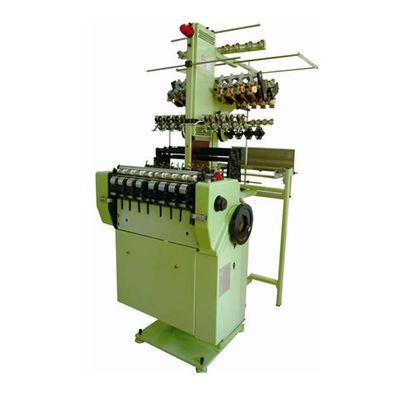

high speed shuttle-free loom for ribbons

Machine model: YJ-NF 8/27; YJ-NF 6/42; YJ-NF 4/66

Number of ribbons or tapes: 8; 6; 4

Width of steel gripper: 27; 42; 66

Number of shedding frame: 12-20; 12-20; 12-20

Pattern circulation: 48; 48; 48

Mortor: 2H.P; 2H.P; 2H.P

speed: 800-1700; 800-1700; 800-1500

Weft density: 2.9-40.5; 2.9-40.5; 2.9-40.5

1. The lalch-type pattern block is characterized by its precision, firmness. durability. ease of dismounting, no noisein running, and assurance of running ata high speed.

2. The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. 11 can run without any noise and progress al high speed.

3. The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity It can reducelhe gravity center, featuring increase of force, reduction of lhe force on and between the iron frame and the cutters which can assure lhat the machine runs al a high speed and keep along service otlife.

4. The machine is precisely made, featuring compatibility, durability, ease of operation, free adlustment. fast supply of spare parts, and ease of dismounting and maintenance.

5. The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester. enhancing the lubricalion between the cutters and the chained pattern blocks.

6. The variation speed braking motor can make stepless speed regulating and be operated at low speed, which help lessen.

7. With "double crocket hook single needle" and "double crocket hook double needle' devices, it can be applied to producing the fabric products like chest ribbons,shoulder ribbons,curtain ribbons. etc.

Machine model: YJ-NF 8/27; YJ-NF 6/42; YJ-NF 4/66

YJ-NF series are high speed shuttlefree jacquard looms for narrowwidth ribbons. which are featured by their high quality. high difficulty and changeability. They can be used to produce various kinds of elastic and non-elastic ribbons. such as chest ribbons. elastic braids for clothes. satin ribbons, zipper ribbons, shoelaces. etc, and can be applied to ready-made clothes, hats. hairaccessories, gifts, medical products, leather belts. gloves, raincoats. footwear. cameras. watches and leather bags With the advanced technology introduced from abroad. this machine is the one for special use lo manufacture ribbons of compact design It is featured by such superior advantages as double-layer weave. double hook, and double weft. and characterized by high efficiency, high economic benefit, convenient operation, good-looking appearance. and smooth movement of comprehensive frames It is equipped with advanced automatic weft feeding device and double variation speed braking motor which ensures fine tuning of weft feeding when non-stop of machine When the fabric is adjusted. you can operate at lower speed by fine motion. It is especially applicable for bra ribbons. chest ribbons and common zipper ribbons It is honored by its wide applicability and wide range of use.
