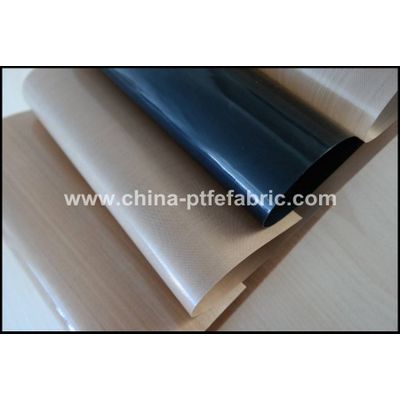

PTFE (Teflon) Coated Fiberglass Fabric

PTFE (Teflon) Coated Fiberglass Fabric are typically composed of woven fiberglass fabrics coated with PTFE or Teflon. These unusual materials offer outstanding non-stick performance, high temperature, chemical and fire resistance as well as excellent electrical properties, and they have been used in a wide range of industrial applications. A variety of substrates, thickness, weights and surface textures can be produced in a diversity of styles

Properties:

- Superior non-stick surface, easy to release and clean

- Low friction coefficient

- Outstanding temperature resistance (from -170u00b0 C to +260u00b0 C)

- Non-toxic and food compliant

- Strong resistance to most chemicals

- Excellent dimensional stability and strong tensile strength due to glass fabrics

- Non combustible-self extinguishing

- High electrical insulating power, strong resistance to electric arc

- Ultra-violet, Infra-red, microwave & radio frequency resistance

Main Specification:

Note: the followings are our normal size,some other customed sizes can be made upon request.



PTFE (TEFLON) Coated Fiberglass Fabric

Standard Width

(mm) Total Thickness

(mm) Weight

(g/m2) Tensiles

(N/5cm)

1000-1250 0.075 155 600

1000-1250 0.125 245 1100

1000-1250 0.140 300 1100

1000-1250 0.230 490 2100

1000-1250 0.330 660 2700

Application:

- For molding: Mold-releasing sheets.

- For printing: Drying screen-printing machines.

- For apparels: Adhesive interlining belts.

- For food processing: Heat sealers, frozen food transportation, defrosting belt and baking belt.

- For packing: Shrink film packaging and side band sealing.

- For office equipments: Paper conveyor belt of copiers.
