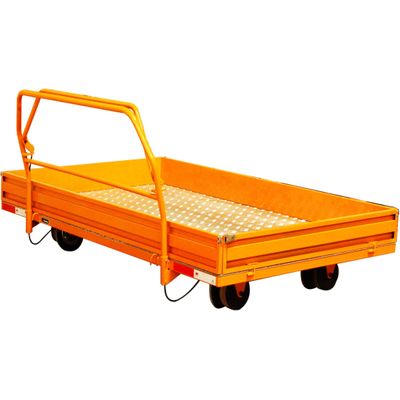

Railway Material Transferring Trolley/Truck

Product Description

1.Railway material transfer wheel is made of carbon fiber and wear resistant materials by die casting. It is of high abrasion resistance.
2.Automatic braking is achieved by releasing the handrail and the brake lever. This effectively ensures safety of the operator.
3.High-strength aluminum alloy featuring light weight and easy to use is adopted. This machine helps transfer of various materials and tools that are used in subway maintenance and repair and rail construction etc.

Product Specification / Models

Specification:WY-1000
Rated load:800kg
Braking distance:<3m
Railway resistance:5
Railway slope:<6 degrees
Railway gauge:1435mm
Body weight:no more than eight percent of rated load value
Braking mode:Brake by releasing the handrail and the brake lever
Hopper length(mm):<900
Hopper width(mm):1500-1700
Hopper coaming height (mm):150
Body height(mm):720-800
Outer side-distance between wheel flanges(mm):1391 Hopper form All sides can be dismounted
Three sides can be laid flat

Application / Models

It is widely used by METRO SYSTEM.
