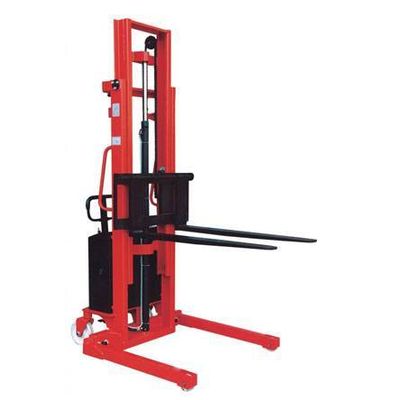

Semi-electric Stacker SPN10/25 10/30 15/25 15/30-A

Product Description

SPN10/25
Model Number SPN10/25-A SPN10/30-A SPN15/25-A SPN15/30-A
Capacity Q kg 1000 1000 1500 1500
Load center C mm 500
Lifting height h mm 75~2500 75~3000 75~2500 75~3000
Fork length l mm 915
Minimum Turning radius Wa mm 2200 2200 2300 2300
Outer Width of legs mm 1080~1360
Inner width of legs mm 960~1240
Outer Width of forks mm 210~800

Inner width of forks mm 10~600
Max.lifting speed with load mm/s ≥60 ≥60 ≥60 ≥60
Lowering speed mm/s Adjustable
