Punching Paper Edge Protector Production Line With High Quality
Home
Punching Paper Edge Protector Production Line With High Quality

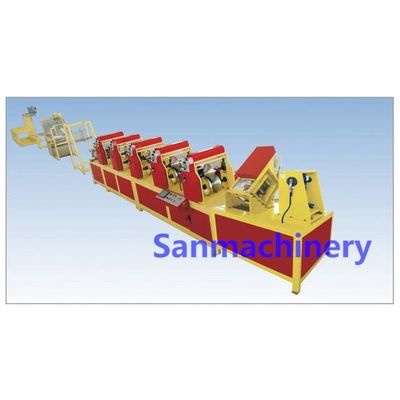

Punching Paper Edge Protector Production Line With High Quality

Min. Order: 1
Payment: T/T,L/C
Minimum Order: 1SET
Delivery: Shipped in 90 days after payment.
Origin: CHINA
Packing: THE PACKING IS SEAWORTHY AND SAFE.
Inspection: CE
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

    Specification:

    Size of protector

    25-100mm

    Max. speed

    45m/min

    Max.quantity of layer

    13layer including1layer surface paper

    Applicable surface paper

    175-250g kraft paper

    Applicable inner paper

    360-600g bobbin fiber paper

    Punch speed

    5-25m/min

    Size of punch protector

    2.5-5mm

    Overall dimension

    24.5*1.8*1.9m highest point for added hoist is 2.9m

    Total weight

    4.5T

    Total power

    13KW

    Compressed air supply

    0.6Mpa,0.2m³/min

    Main Features

    1,Coaxial transmission,transmission parts surface have tempering and surface treatment.

    2,Online punch,can finish punching and framing products one time.

    3,Double cylinder to balance pressure.

    4,Touch screen and servo system human-machine interface,the operation is more humane,cutting tolerance can up to 1000±1mm.

    5,Automatic alarm,fault prompt,adjustment and maintenance are convenient.

    6,The system is equipped with automatic counter,without manual counting.

    Our Service

    ⇒One year gurantee for whole machine, all life follow-up service.
    ⇒24 hours technical support by email.
    ⇒Technicians oversea set-up and workers training.
    ⇒Use- friendly English for operation system.

    Packing & Delivery

    Packaging Details:Film+ honeycomb board packing.
    Delivery Detail:Shipped in 90 days after payment.

    THE PACKING IS SEAWORTHY AND SAFE.
