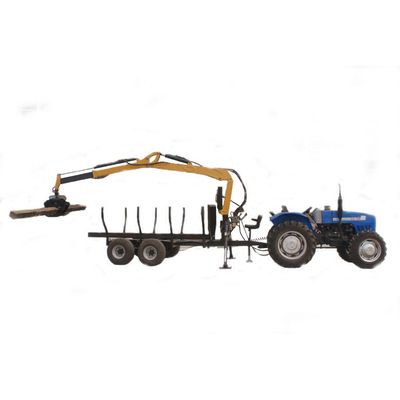

8 Ton Timber Grab Trailer

Main characteristic:
It's used in loading, transporting, stacking and unstackling of wood, grass and reed, bamboo, etc. Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.

Main parameter:
Model: ZMJ-8-600
Outside dimension(mm): 5250*2485*2000
Load weight(kg): 8000
Dead weight(kg): 2000
Tire size: 400/60-15.5
Swing angle: 360°
Max. Reach(m): 6.5
Max. Catching weight with 6 m reach (kg): 500
Max. Catching weight with 4.3 m reach(kg): 900
Max. Catching weight with 2.3 m reach(kg): 1400
Matched hydraulic: System pressure: 20MPa, Flow: 35-45L/min, Volume: 90L
Matched power: ≥ 70HP
If you are interested in our trailer, pls contact me freely for more details.
