Product Description

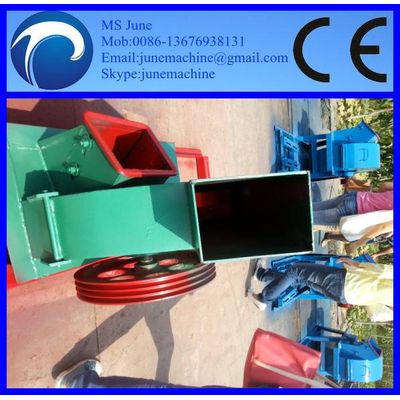

The wood chipper machine is a specified equipment for producing chips, the chips are widely used in paper making, shaving board,MDF etc.it is not only be driven by motor, but also can be diesel engine according to the need of client.
Product Feature
Wood chipping machine is a kind of equipment special for wood crushing. It is based on the needs of industrial production in China after years of research and design. As a result of rational design, compact structure, safety, durability, high production efficiency, the use effect is very good. The whole set equipment is drive by only one motor; it has low noise, simple structure, compact layout, stable working, low consumption, high yield and high quality finished products.
Product Specification / Models
ModelBladesEntrance dimension (mm)Cutter diameter (mm)Blades dimension (mm)Capacity (t/h)Speed of spindle(r/min)Power (kw)Dimension (mm)
4203150*150420150*70*80.6-1.56007.51200*500*800
6003180*150600200*100*101.5-3600151500*570*1050
7003190*200650230*120*122-660018.51500*680*1100
8004200*200735230*120*123-8550301850*730*1240
9504230*250830250*120*125-10550371900*820*1500
11504-6300*3301150340*150*148-13600752560*1150*1800
14104400*4001410480*170*1810-166001102900*1400*2350
