Full Automatic Monobloc Rinser Filler Capper for Non-Carbonated Beverage

Product Description

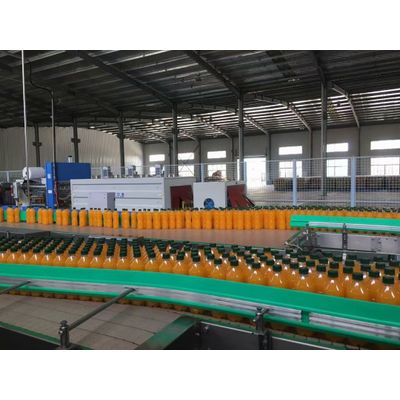

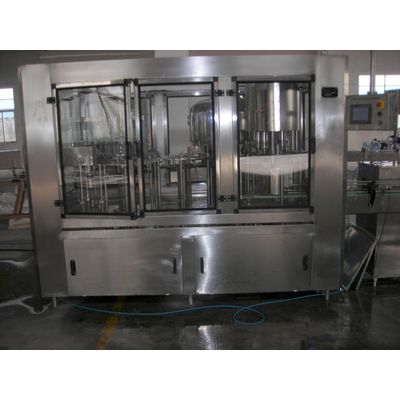

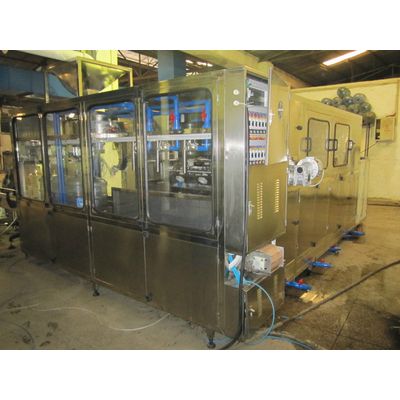

Abuot CGF seris Monobloc Rinser Filler Capper


1. Rinsing, filling, and capping functions are integrated in one machine, fully automatic synchronized working.

2. Suitable to fill non-carbonated drink such as mineral water, wine in PET bottles or glass bottle.
3. Food grade 316L or 304stainless steel contact parts

4. PLC automation controls and touch-screen panel system.


5. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.


Product Feature

Monoblock Rinser-Filler-Capper Consists of:

Monoblock Base

Electrical Panel

Rinsing Station

Filling Station

Capping Station

Monoblock Base - The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame. The base houses the motor and drive gears and it is accessible through stainless steel removeable doors. The rinser-filler-capper is motorized by a single AC electric motor and controlled by an inverter, which allows for variable speed operation. Operating speed of the rinser-filler-capper is synchronized.

Electrical Panel - The electric panel contains the inverter, motor starters, the PLC, and other electromechanical components for the operating of the machine. The inverter enables the operator to vary the rate of production. This variable speed control feature enables the operator to synchronize the rinser-filler-capper with other packaging machines running on the same line. Emergency stop button is mounted on front of touch screen panel.

Rinsing Station - The rotary rinsing turret consists of individual bottle neck grippers and spray nozzles to rinse the inside of PET bottles. All parts that contact the bottle are made of stainless steel or food grade plastic material. The bottle grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a secure grip. After the bottles are secured in the gripping mechanism, the bottle is turned upside down and centered above a spraying nozzle that directs a stream of rinse water into the bottle. After being rinsed, the water then drains out the bottle and automatically turned over to an upright position.

Filling Station - Filler has overflow style stainless steel fill heads that are suitable to fill thin flowable liquids in PET bottles. Starwheels move the bottles "by the neck" through the rinsing, filling and capping mechanisms. Filling valves are fully made of 316 stainless steel with food grade gaskets. The filling valves are secured to allow easy assembly and disassembly. Each valve is internally polished (mirror finish). If the bottle is not present the valve does not deliver any product.

No Bottle No Filling

Capping Station

Safe, clean and reliable capping

Suitable to the application of screw plastic caps on PET bottles

The capper consists of a steel structure externally shrouded with a stainless steel casing.

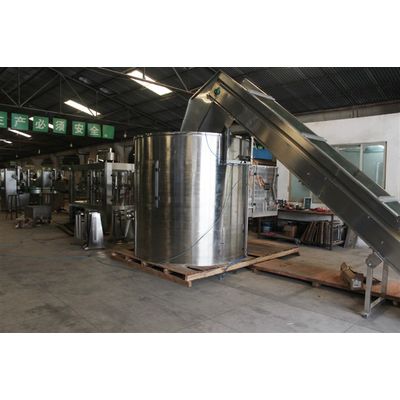

The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.

The cap feeder and all the parts in contact with the caps are made of stainless steel or food grade plastic.

The cap feeder guides the caps onto a chute fitted with a device to deliver them to the pick-off point with the open end down.

The capping heads are raised and lowered by the action of a follower that rides on a cam.

No Bottle No Capping, no caps auto stops


Product Specification / Models

Available Models: (based on 500ml PET bottle)
CGF14-12-4 Capacity: 2000~4000BPH
CGF 16-16-6 Capacity: 4000~5000BPH
CGF18-18-6 Capacity: 4000~6000BPH
CGF24-24-8 Capacity: 6000~8000BPH
CGF-32-32-8 Capacity: 10000-12500BPH
CGF40-40-10 Capacity: 16000-20000BPH
CGF50-50-12 Capacity: 20000-24000BPH
CGF60-60-15 Capacity: 25000-30000BPH

Application / Models

This Bottle Washer Filler Capper Equipment Line is fit for PET Bottle and Glass bottle with Non-Carbonated drinks, such as : Mineral Water, Wine etc.
