Product Description
Similar Words: Inline High Shear Mixer, High Shear Pump, Inline Disperser, Inline Homogenizing Mixer
An inline mixer is a high shear mixer for inline or continuous operation. In the Inline process, the mixer is installed outside the tank. This makes it easy to be built into an existing production line with normal inlet/outlet connections. In the case to deal with liquid with a low viscosity, the inline mixer can pump the liquid without an additional pump. That is why it is also called High Shear Pump. The mixer can be used to deal with the product in a single pass or with several circulations to make the product better.
Product Feature
Multi-stage Inline Mixer:

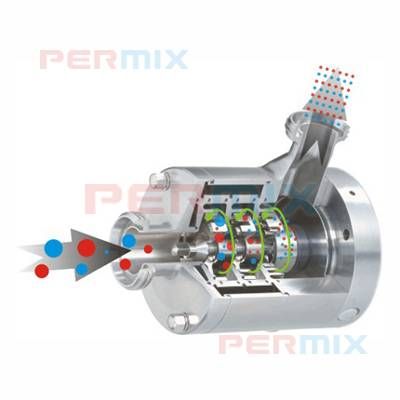

The multi-stage (usually three-stage) inline mixer has three sets of stator/rotor systems to enhance its shearing performance. This design dramatically reduces processing time, and in some cases only one pass through the mixer can lead to satisfied products. Please contact our staff for more information about our innovative Multi-stage Inline Mixer.
Product Specification / Models
Specifications:
Model: PC (Inline type)
Power supply: 220V/380V; 50Hz/60Hz
Capacity: 3,000L/hr - 180,000L/hr
Power: 2.2kW - 250kW
Rotation speed: 3000/1500/1000rpm @50Hz;
3600/1800/1200rpm @60Hz
Contact parts: 304, 316L
Application / Models
Applications:
High Shear Mixers are widely used by a variety of industries in different stages of the processing. They are highly efficient to save a lot of energy and time compared with traditional mixing methods.
- Food & Beverage
Reconstituted milk, Salad dressing, Mayonnaise, Ice cream, Cheese, Yogurt, Fruit juice
- Pharmaceutics & Biology
Drug synthesis, Vaccine, Fat emulsion, Injectable suspension, Veterinary medicine, Cell extraction
- Cosmetics & Daily Care
Detergent, Body gel, Shampoo, Cream, Lotion, Tooth paste, Soap
- Chemicals & Oil Industry
Synthetic rubber, Resin, Bitumen, Silicon oil, Dye, Pigment, Coating, Ink, Nano material
