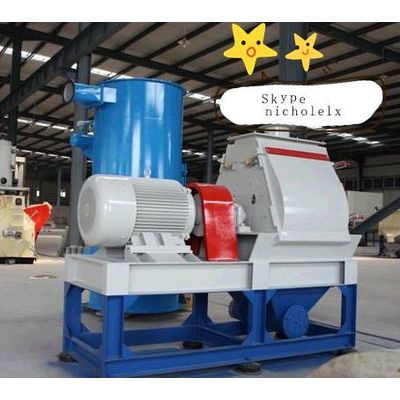

Hammer Mill for Citric Acid Factory

Features:

1.The shape of crushing room realizes water drop unique inlet air way avoids circumfluence phenomenon in the crushing process.equip U type hitting groove in the bottom of the crushing chamber,which enhances the output,quick-start full opening operation door,elasticity screen,easy to maintain and replace screen.

2.Uses import NSK bearing to guarantee the service life,the nylon stick coupling drives directly,effectively avoids bearing radiation.

3.Through dynamic balancing check,the rotor runs more stably,the noise is lower,and the performance is more ideal.

4.Feed inlet locates in the top of pulverizer with a strong magnet,which can match with each kind of feed mechanisms.

5.Through adjustment ,this machine can realize coarse cracking,fine cracking,minuteness cracking,one machine multipurpose.



About the specifications and model,pls contact Ms.Carolyn Lin

u00a0u00a0Hammer millu00a0u00a0

ModelORB-M-1ORB-M-2ORB-M-3ORB-M-4ORB-M-5ORB-M-6

MM Rotor diameter500500630630720700

(Rpm)Spindle Speed295029502950148014801480

(MM)Crush room width2505004506508501200

(M/S)hammer Line speed97.397.397.386.886.8106.8

Hummer quantity36/7240/8072/14436/7248/9648/72

(KW)Allocation power11/1522/3037/4555/7590/110110

(M3/Min)Normal suction air volume304260607590
