Product Description
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
Product Feature
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100% interferometer check is available under special requirement.
Product Specification / Models
Simplex Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
The cable size could be 0.9mm,1.6mm, 2.0mm,2.8mm
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH

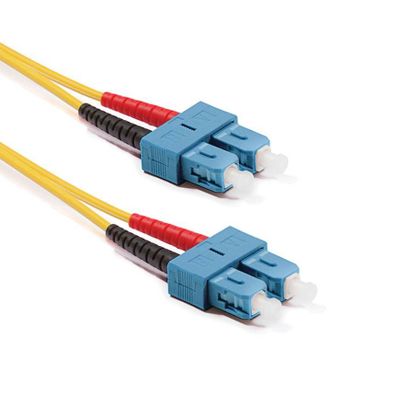

Duplex Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU, MTRJ ,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
The cable size could be 1,6*3.3, 2.0*4.1,2.8*5.7
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Loopback Patch cord
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,LC,MTRJ etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Armadillo Loopback
Easier cable insertion and extraction
The connector could be SC,LC.
Increased lifespan
Precise performance for each specific application
Easy part identification
Improved shell rigidity
Precise optical performance
Hybrid Patch cord
Both simplex and Duplex is available too.
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU, MTRJ ,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
The cable size could be all kind of Simplex and Duplex
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Break-out Patch cord
The unit fiber is 2.0 or 2.8 simplex cable.
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
Fiber count: 4.6.8.12.24.48..
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Patch cord Specification
Optical Specification
ConnectorSC,FC,LC,ST,MU,E2000,MTRJ MPO/MTP
Polishing SM/UPC MM/PC SM/APC SM/PC MM/PC
Insertion Loss(max)<=0.30dB <=0.30dB<=0.30dB <=0.75dB <=0.5dB
Return Loss(min) >=50 dB >=35 dB>=60 dB >=40dB >=20dB
Tensile Strength<10kg
Durability<0.20 dB typical change, 500 matings
Repeatability<=0.1dB
Storage , Operating Temperature [u00b0C]-40~+85
Geometric Specification
PC End-faceAPC End-face
Radius of CurvatureSC/FC/ST10~25 mm5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset <=50 um
Fiber Spherical Height +/- 50 nm
Angular Offset ------ 8u00b0u00b1 0.2u00b0
Application / Models
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
