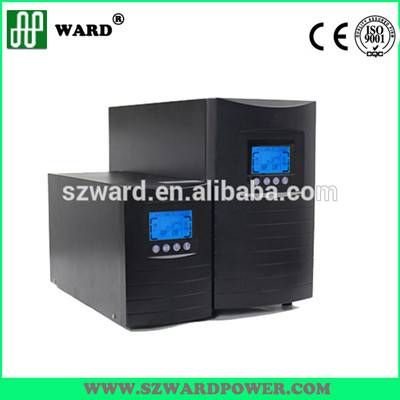

30 minutes back up time Single Phase and data center Application high frequency pure sine wave home

1. UPS

2.With long back up time

3.CE,ISO

4.export to all over the world

Features of UPS



1. flexible setting energy sequence;



2. AC bypass configuration ;



3. High Efficiency (Up to 95%) ;



4. intelligent distribute load type, improve the use ratio effectively;



5. EPO (Emergency Power Off) ;



6. solar input ,load and charge balance automatically;



7. Low installation and operating costs ;



8. solar energy data is clear at a glance,calculate the energy by solar absorb directly and accurately



9. inverter efficiency is 98% max;



10. LCD shows the solar energy flow chart and data;



11. Low Total Harmonic Distortion Level (THD


12. Synchronization Capability with external sources ;



13. 50/60 Hz Frequency Converter version is available ;



14. intelligent generator input compatible, once the system power not enough,send a signal to start generator automatically;



15. Intelligent battery management system extends the lifetime of batteries;



16. Different voltage applications with refer to country mains characteristic.

Online UPS Model

EX33 20K UPS

EX33 30K UPS

EX33 40K UPS

EX33 60K UPS

EX33 80K UPS



Rated Capacity of UPS

20KVA/16KW

30KVA/24KW

40KVA/32KW

60KVA/48KW

80KVA/64KW



Input

Voltage of UPS

210-475VAC



Frequency of UPS

40-70Hz





Phase Line of UPS

Three-phase 4 line + earth line



THD of UPS

<3%



Input Power Factor of UPS

>0.99



Twin-channel Line Input of UPS

Yes



Battery

Type

Valve-regulated lead-acid storage battery



Standby Time

Depended by external battery bank



Output of UPS

Voltage of UPS

380VAC / 220 VAC



Frequency of UPS

50/60Hz



Phase line of UPS

Three-phase 4 line + earth line



Rated output power factor of UPS

0.8



Overload Capacity of UPS

125% maintain 10minutes



150% maintain 1minutes



Efficiency of UPS

Line Input Mode of UPS

93%

94%



BAT Mode of UPS

93%

94%



ECO Mode of UPS

98%



Intelligent Speed Control of Fan

yes



Display Device

LCD of UPS

I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning



LED of UPS

The operation state of UPS



Warning Devices of UPS

Two ways of alerting: BUZZER sound, lamp signal,



Communication Interface of UPS

RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot



Operation of UPS

Temperature of UPS

0-40



Environment of UPS

Humidity of UPS

<95% (non condesing)



Weight of UPS

Net weight(include transformer)

82Kg/208Kg

110Kg/275Kg

114Kg/314Kg

282Kg

306Kg



Gross weight(include transformer)

122Kg/248Kg

160Kg/325Kg

164Kg/364Kg

356Kg

380Kg



Size L*W*H(mm) of UPS

643u00d7420u00d7925

710u00d7470u00d71150

800u00d7600u00d71850

1 ,Office: computer, printer, duplicating machine, scanner, digital camera printers, monitors, copiers, scanners, digital cameras, digital cameras etc.







2 ,Kitchen Appliance: microwave oven, electromagnetic oven, refrigerator etc.







3, Home electric appliance: Electric fan, vacuum cleaner, lights Air Conditioners,TV refrigerator Electronic ,laptop, PDAS ,energy-saving fluorescent, incandescent, small television sets, sewing machines ,washing-machine ,Home stereo ,Blender ,Coffee maker, portable vacuum etc.







4 ,Power tool series: electric saw, drilling machine, punching machines etc.
