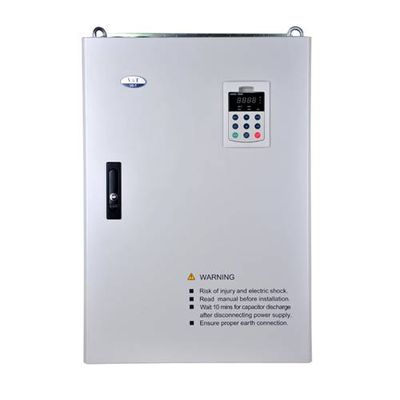

E5-H high performance universal variable speed drive (VSD)

E5-H series high performance universal variable speed drive (VSD), is an universal inverter with simple vector control, can also realized constant pressure water supply (if proffessional function for constant pressure water supply is needed, E5-P series dedicated inverter should be selected).

Available voltage rage:

380 VAC - 480 VAC (323 VAC - 528 VAC): 380 V, 400 V, 415 V, 440 V, 460 V, 480 V



E5-H series universal VSD (VFD) include following outstanding features:

1, Sine wave PWM control with vector control;

2, Built-in PID function;

3, Wide voltage adaptability, AC260V~480V input, DC350V~750V input;

4, Containing a variety of fan and water supply energy saving mode and energy saving rate selection;

5, With sleep and wake up function.

6, Vector control performance and insensitive to motor parameters.

Control features

Control mode

Vector control 1



Startup torque

0.5Hz 150%



Speed adjustment range

1:100



Speed stabilization precision

+-5%



Product

functions

Key functions

Under voltage adjustment, switching of AC operation grounding, protective grounding and DC operation grounding, rotation speed tracing, multi-speed operation (up to 16speeds), auto tuning, S curve acceleration/deceleration, slip compensation, PID adjustment, drooping control, current limiting control, manual/auto torque boost. current limiting, multi-functional input/output terminal



Frequency setting mode

Operation panel setting, terminal UP/DN setting, host computer

communication setting, analog setting AI1/AI2.



Frequency range

0.00~300.00Hz Note: Upon the control mode of vector control 1 0.0~3000.0Hz, which can be customized according to the customer demand



Startup frequency

0.00~60.00Hz



Acceleration/deceleration

time

0.1~36000s



Powered braking

capacity

Braking unit action voltage: 650~750V;

Operating time: 100.0s;



DC braking capacity

DC braking initial frequency: 0.00~300.00Hz;

DC braking current: Constant torque: 0.0~120.0%

DC braking time: 0.0~30.0s;

there is no initial waiting time for the DC braking to realize quick braking



Magnetic flux braking

function

Ongoing action and no action upon deceleration as option, no action upon deceleration at default



Unique

functions







Multifunctional M key

The unique multifunctional key is used to set the frequently used operations: JOG, emergency shutdown, running command reference mode switch , menu switching



Multiple menu modes

Basic menu mode, fast menu mode. Menu mode of non-leave-factory value function codes, Menu mode of last changed 10 function codes



Parameter copy

The standard operation panel can realize the parameter upload, download and display the copy progress. The user can select to forbid the overwriting of the uploaded parameters.



Displayed/hidden

function code

The customer can select to display or hide the function codes by themselves.



RS485 communication

ports

RS485 communication ports support Modbus protocol (RTU). The standard operation panel can realize remote control box function with a maximum distance of 500m.



Operation panel

Button type or shuttle type operation panel optional, protection class: IP20 as standard, IP54 as optional choice



Common DC bus

The full series can realize common DC bus supply for several inverters.



Independent duct

The full series adopts independent duct design and supports the installation of heatsink outside the cabinet



Power-up auto-detection

Realizing the power-up auto-detection of internal and peripheral circuits, including motor grounding, abnormal +10V power supply output, abnormal analog input, and disconnection



Protection

function

Power supply undervoltage, overcurrent protection, overvoltage protection, interference protection, abnormal comparison reference input, auto-tuning failure, module protection, heatsink overtemperature protection, inverter overload protection, motor overload protection, peripheral protection, abnormal current detection, output to ground short circuit, abnormal power failure during operation, abnormal input power, output phase failure, abnormal EEPROM, abnormal relay contact, temperature sampling disconnection, encoder disconnection, abnormal +10V power supply output, abnormal analog input, motor overtemperature (PTC), abnormal communication, abnormal version compatibility, abnormal copying, abnormal expansion card connection, terminal mutual exclusion detection failure, hardware overload protection



Efficiency

At rated power, 7.5kW and below power class >=93%, 45kW and below power class >=95%, 55kW and above power class >=98%



Environment

Operating site

The product shall be mounted vertically in the electric control cabinet with good ventilation. Horizontal or other installation modes are not allowed. The cooling media is the air. The product shall be i
