NEK 606 Standard Fire Resistant Power and Control Cables,P34 BFOU-HCF 0.6/1 kV

Contacter: Penny Zou

E-mail: penny@caledonian-cables.com



Website: www.caledonian-cables.co.uk

TEL: 021-62860355,18930597072

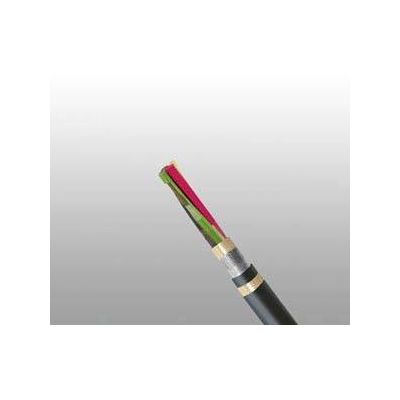

P34 BFOU-HCF 0.6/1 kV





Applications



These cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100 degrees centigrade hydrocarbon fire.





Standards



IEC 60092-353IEC 60092-351IEC 60092-359IEC 60331-21IEC 60332-1IEC 60332-3-22IEC 60754-1,2IEC 61034-1,2NEK 606:2004





Construction



ConductorsTinned annealed stranded compacted copper to IEC 60228 class 2.

InsulationMica tape + Halogen free EPR/XLPE.

BeddingHalogen free compound.

ArmourTinned copper wire braid.

Outer Sheath1Halogen free thermosetting compound, SHF2.

HC-fire protectionExtruded thermoplastic fire protection compound.

TapingLapped glass fibre tape.

Outer Sheath2Flame retardant halogen-free thermoplastic compound, SHF1,coloured black.





Electrical Characteristics





Ambient Temperature Correction Factors



Ambient Temperature Correction Factors35404550556065707580

Rating Factor1.11.051.00.940.880.820.740.670.580.47





Mechanical and Thermal Properties





Dimensions and Weight



Construction No. of coresu00d7Cross section(mmu00b2)Nominal Insulation Thickness (mm)Nominal Diameter Over Bedding (mm)Nominal Diameter Over Sheath1 (mm)Nominal Overall Diameter (mm)Nominal Weight (kg/km)

1u00d7501.415.018.545.52900

1u00d7701.416.520.547.53300

1u00d7951.618.523.050.53800

1u00d71201.620.525.052.54260

1u00d71501.823.027.054.54750

1u00d71852.025.029.557.55380

1u00d72402.228.032.566.07050

1u00d73002.430.535.568.08000

2u00d71.51.010.013.040.51890

2u00d72.51.011.014.542.02080

3u00d71.51.010.514.042.02140

3u00d72.51.011.515.042.52200

3u00d741.013.016.543.02400

3u00d761.014.018.045.02600

3u00d7161.018.523.050.03500

3u00d7351.225.029.557.54840

3u00d7701.433.039.072.08150

3u00d71201.641.048.081.511300

3u00d71501.846.054.588.513300

4u00d72.51.012.516.544.02300

4u00d761.015.519.547.52870

4u00d7161.020.525.053.53830

7u00d71.51.014.017.544.52550

12u00d71.51.018.522.550.03140

27u00d71.51.026.531.064.55070

7u00d72.51.015.019.046.02760

12u00d72.51.020.524.552.03500

Note: For XLPE insulated cable, a thinner insulation thickness is applied.





For more details please visit:

http://www.caledonian-cables.co.uk/products/offshore-cable/NEK606/P34-BFOU-HCF.shtml

These cables are fire resistant, flame retardant, low smoke and halogen free.

NEK 606 Fire Resistant Power and Control Cables,P34 BFOU-HCF 0.6/1 kV

These cables are used for emergency control, power and lighting systems that need to be operational during a 1100 degrees centigrade hydrocarbon fire.
