crane cable, lift cable, flat cable for cranes, lift parts,YFFB

As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations,crane and other related products

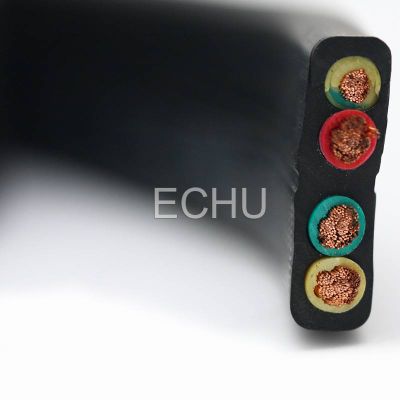

Structure:



Conductor:superfine copper strands acc.to VDE0295,CLASS 5



Insulation:mixed PVC,resistant to oil,flame resistance and self-extinguishing



Colour:acc.to 227IEC(brown,blue,black,green/yellow)



5cores or more with black number with white digital coding

Sheath:butadiene-acrylonitrile rubber;resistant to oil,flame retardant and self-extinguishing;



Colour:black(RAL9005)or grey (RAL7001)



Standard:acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1.

Technical data:



Rated voltage:≤1.5mm 300/500V >1.5mm:450/750V



Test voltage: ≤1.5mm 2500V >1.5mm:3000V



Mimimum bending radius:0.3m


Burning vertically test:GB/T1 8380.1-2001, IEC 60332-1:1993 test



Passedstandard: GB5023.6,IEC60227-6,EN 50214.



Used under the normal conditions .the temperature of conductor is lower than 70u00b0C



Temperature range:-15u00b0C to +40u00b0C



Cables are reommended for installations where the suspended length doesn't exceed 80m;and the speed of travel does not exceed 4m/s



If it is more than this ,with steel
