Product Description

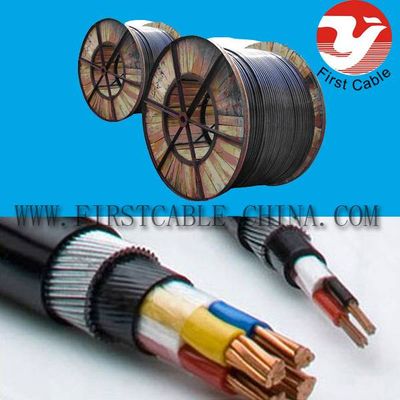

1.Standard of XLPE Power Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2. Rated Voltage of XLPEP ower Cable:6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV
3.Characters of XLPE Power Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90u00b0C
b.Installing temperature of cable should not be less than 0u00b0C
c.Max short-circuit temperature is not exceed 250u00b0C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables.
Product Feature
1. Good perfromance and long term safety life 2. Fast delivery and good package 3. OEM service, high quality , competitive price available
Product Specification / Models
Standard: IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request Certification: CE / CCC/ ISO
Application / Models
The cables can be fixedly laid in the environments such as indoor, aerial, cable conduit and tunnel for power transmission and distribution line project in rated A/C UO/U at 0.6/1KV and below.
Other Information
We can provide the OEM service, we can do according to your requirements. Product quyality assurence: 50 years Note: The product would be replaced if there is anything wrong with it in 10 years.
