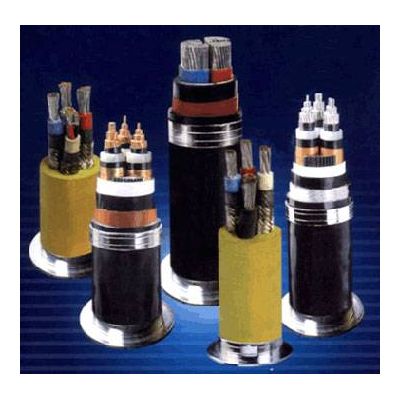

Product Description
1,PVC Insulated power cable
2,Copper or Aluminum conductor
3,Steel wire or Steel type Armored
4,With 24years experience,
5,CCC, ISO certificate
Product Feature
Specific Property for Using
1) The allowed long-time working temperature of conducting core should not exceed 70u00b0C
2) When short-circuit (Max 5s), the highest working temperature of cable conductor should not exceed 165u00b0C
3) While laying the cable, the ambient temperature should not be lower than 0u00b0C and the bending radius should not be less than 10 times of outer diameter of cable. 4) With good chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant. 5) With light weight, perfect bending properties, stalled and maintained easily and conveniently. 6) Number of cores: One, two, three, four, five.
Product Specification / Models
TypeNameUsage
VVCu/ AL conductor PVC insulated PVC sheathed power cableCan be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force
VLV
VYCu/ AL conductor PVC insulated and PE sheathed power cableCan be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VLY
VV22Cu/ Al conductor PVC insulated steel type armored and PVC sheathed power cableCan be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV32
VLV32PVC insulated fine steel wire armored PVC sheathed power cableCan be laid at indoor, underground and mining well .Cable can undertake mechanism outside force
VV33
VLV33Cu/Al conductor PVC insulated, Steel wire Armored PE sheathed power cableCan be laid at indoor, underground and mining well .Cable can undertake mechanism outside force
Application / Models
1, Standard and Scope of Application:
The PVC insulated power adopts GB (China National Standard)and IEC standard, and is used as power distribution and transmission line system with 6KV and below.
