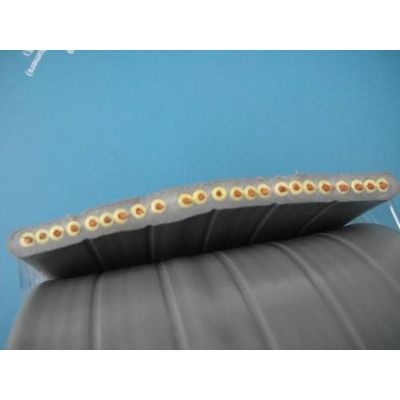

flat cable for elevator

Product Description

elevator cable or lift cable,CE elevator cable,flat cable for elevator TVVB TVVBG

Product Feature

The outer sheath is extensively resistant to oil and cooling liquid.
Standards:GB5023.6,IEC60227-6,EN 50214
CE approved



Properties:

The outer sheath is extensively resistant to oil and cooling liquid.

Standards:GB5023.6,IEC60227-6,EN 50214

Structure:

Conductor: fine strands of bare copper wire,

Acc.to VDE0295 CLASS5

Insulation:special PVC

Colour:yellow,white,orangeg with black number with white digital coding

Bearing:steel rope

Outer sheath:flexible PVC,cold resistance ,flame resistance

Colour:grey(RAL7001)

Technical data:

Rated voltage:300/500V

Test voltage:2500V

Minimum bending radius:0.3m
Burning vertically test:GB/T18380.1-2001

IEC60332-1.1 993 test passed

Used under the nomal conditions.the temperature of conductor is lower than 70

Temperature range:-15 to +70

Product Specification / Models

TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.

TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.

Application / Models

Applications:

As control and signal cable for elevator as well as moving machine parts,its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
