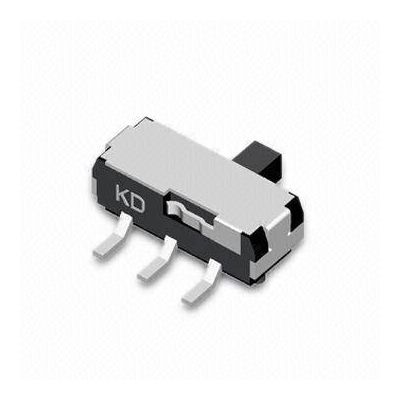

SMD Mini Slide Switch with Insulation Resistance of 100M Ohms Minimum

Model Number: MSK12D04

Rating: 0.3A/6V DC

Function: 1P2T

Timing: non-shorting

Contact resistance: 70M ohms maximum

Insulation resistance: 100M ohms minimum

Dielectric strength: 500V

Operating force: 180gfu00b1100gf

Terminal strength: 500gf

Displacement of actuator (knob): 1kgf

Life test: 10,000 cycles

Bump test: in three vertical-axes directrions and each directrion was applied to 100 cycles at an acceleration of 100m/s2

Shock test:

Frequency: 10Hz-50Hz-10Hz and 10 cycles at swing of 3.5mm

Solderability test: in the solder bath of 230u00b15 degrees Celsius for 3u00b10.5 seconds

Resistance to soldering heat test: in the solder bath of 260u00b15 degrees Celsius for 3u00b10.5 seconds

Temperature range: store at temperature of -25 to 70 degrees Celsius for 3m and each 10 cycles of transition with intervals of 2 to 5m

Cold test: at -25u00b13 degrees Celsius for 48 hours

Heat test: at 70u00b12 degrees Celsius for 48 hours

Humidity test: at 40u00b12 degrees Celsius and humidity of 90 to 95% for 96 hours

Practical temperature range: -16 to 60 degrees Celsius

All kinds of home and industrial electronic equipments, including computer, audio system, phone and MP3 player.

Made of high-quality materials, reliable performance and different sizes are available
