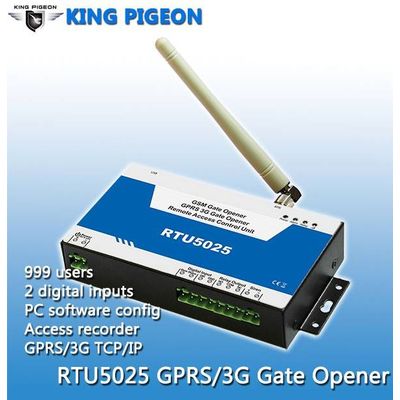

universal gate door opener remote control--- RTU5025

The GSM 3G Gate Opener is special for authorized door access, and require turning ON/OFF your equipments remotely with a FREE call from your mobile phone and protect your assets. It supports to open the gate at the specified time. Also, the historical data can be read out via USB port.

The RTU5025 supports GPRS communication function, very suitable for remotely monitoring outdoor cabinets and stations of telecom company, traffic origination, power supply company and so on. It can be authorized different repair person or maintains person to open the cabinets or stations at the specified time, saving time to get the keys for the locks and saving cost to repair or replace the locks while the person lost the key. And also can remote monitoring the door is opened or closed, or illegal opened.

1.Quad-band, 3G WCDMA, 3G CDMA, can work in the worldwide GSM and 3G Networks;

2.No call charges. the GPRS-3G Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';

3.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

4.Add or remove users by SMS Text command or over GPRS Network or USB Port;

5.No need to provide a remote control or keys for different users;

6.Up to 999 authorized phone numbers can be configured at the specified time;

7.Remotely upload the historical data or via USB port, the record capacity is 10000events;

8.1 Digital inputs for motion sensors or other sensors to protect your door and windows;

9.1 input special for monitoring door status and automatically armed when door closed;

10.1 output with relay rating 3A/240VAC for connecting the switch of the door or machines;

DC Power supply :Standard adapter: DC12V/1A

Power consumption:12V input Max. 50mA/Average 25mA

Frequency range:RTU5025W : 2G: GSM900/1800MHz, 3G WCDMA : 900/2100MHz UMTS ;

SIM Card:



Supporting 3V SIM Card

Cabinets or stations of Telecom company;



Cabinets or stations of traffic originations;



Cabinets or stations of power supply company



Home and garage owners



Business companies



Hotels



Warehouses



Parking places



Hospitals



Other place need remote switching applications



Simple Security Alarm Systems applications

3G Gate Opener main panel * 1



GSM Antenna * 1



AC/DC Adaptor *1 (AC100V~240V to 12VDC/1A) EU/USA/UK/AU type plug available



Connect Terminal*1



User Manual (CD)*1



Packing size: 190mm*140mm*60mm (W*D*H), Non-Logo package paper box.



Weight: 0.80KG



15pcs per carton



Carton size:47*32*28cm, 12KG/ctn
