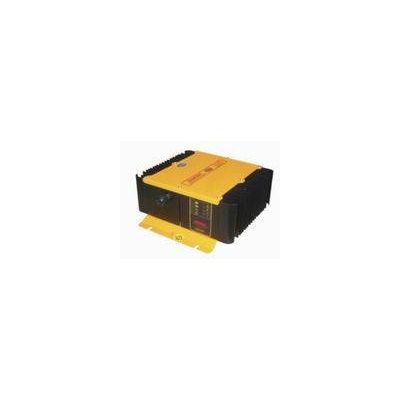

Water Proof with PFC Battery Charger

This is an intelligent battery charger, which adopts advanced high frequency switching mode power supply technology. The charging or recovery process is controlled intelligently by a high performance microprocessor. A 0.99 Power Factor minimizes utility surcharges, maximizes use of AC power, and makes it can operate with worldwide range AC input.

Approved battery charge algorithms for ideal charging, which can not only make the charging with high efficiency, but also can resume the battery capacity and increase the battery life span. Fully sealed enclosure which provides improved reliability in demanding environments, and the advantages of light weight, compact size and long life design make the charger more competitive than any other battery chargers.

Some charger modules can be used in parallel directly to increase charging current and realize high-speed charging.

Specifications

AC Input Voltage: AC95V to AC265V

AC Input Frequency: 45Hz to 65Hz

Max AC Input current: 12A@110V, 6A@220V

AC Power Factor: no less than 0.99

DC Output Voltage: See the Type Table

DC Output current: See the Type Table

Maximum Efficiency: ≥90%

Environmental Enclosure: IP66

Shock & Vibration: SAEJ1378

Safety-North America: UL2202/UL1564 2nd Edition

Emissions- North America: FCC Part 15/ICES 003 Class A

Immunity-Europe: EN61000-4-2/3/5/6/11

Operating Temperature: -20 Celsius degree to +50 Celsius degree(-22-122)

Type Description



Type Table

TypeBattery VoltageCharge current

ipCHWP-123012V30A

ipCHWP-243024V30A

ipCHWP-362136V21A

ipCHWP-481848V18A

ipCHWP-601560V15A

ipCHWP-721272V12A

ipCHWP-12008120V8A

ipCHWP-14408144V8A

The chargers are mainly used for Scissor Platform,electrical golf carts,sightseeing carts,electrical scooters.

Protections

Short Circuit: Electronic current limit, manual reset

Thermal Cutback: Reduce output current if thermal is over 85u00b0C

AC under or Over: Shut down, auto-reset.

Reverse Polarity: Electronic protection, auto-reset.

Operation Indication

Stand By: AC LED on

<80% Charge: Charging with maximum current.

>80% Charge: 80% LED on, Charging current is cutting down bar by bar.

100% Charge: FULL LED on, Charging course is over.

Maintenance: Auto-restart if battery voltage<2.1V/cell or 15days elapse

Fault indication

Charger Fault: AC & FAULT LED on, LED4 flash.

Battery Fault: AC & FAULT LED on, LED1 flash.
