1. Product information:

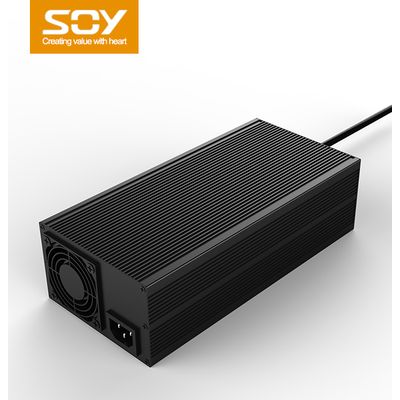

Product name: 1000-1500W high power power supply
Product model: SOY-DGL1500W
1: Input100 ~ 240Vac PF> 0.99, THD <5% _x000b_
Output: 54.6V 20A_x000b_
42V 20A_x000b_
35V 17.15A
24V 16.67A
2.Product characteristics:
Small Volume, high efficiency, high power density, high PF value, size: 200 * 108 * 55MM, product's PF> 0.95, making the product more efficient, can achieve 93% efficiency, the product has short circuit protection, overcurrent protection, Over-voltage protection; the product passed the test of EMC EN55032, designed according to TUV, CE, CB, and ETL, working temperature: -20 ~ 45 degrees.
It can be a constant current and constant voltage charger, and it can also be an industrial power supply for constant voltage.
The total output power can reach 1500W, the input full voltage is 180-264AC, high PF, high efficiency, the PF of the product can reach 0.99, the overall efficiency of the product can reach 93%, and the size is 230 * 128 * 70MM.
Product operating temperature can reach: -20 ~ 50 degrees;
the scheme used is: interleaved PFC + LLC resonant half-bridge + synchronous rectification scheme, which greatly improves the efficiency of the product, which can reach 93% efficiency. The output ripple noise is also very small, which can reach the standard of 0.5%.
The selected IC is an international first-tier brand: the new power element MH2501 + MH2511 + MCZ5207 + NXP TEA1791AT
product output is constant current and constant voltage, and also has a constant voltage high-power industrial power supply.
Already have products: 40.2V30A,
