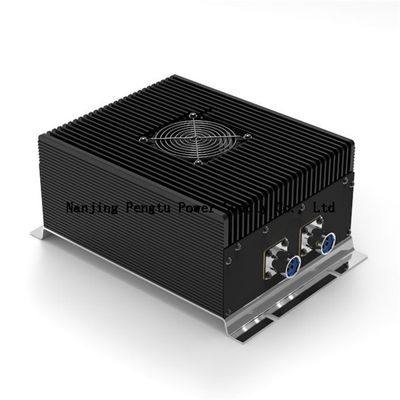

PDE-F Series 1000-1500W DC Converter 24V 48V 110V.Product details are as follows:
Features
Πtype input filter
High Output current and power
Design for high reliability,long lifetime
Wide range of power,easy to upgrade
Easy installation
Full load efficiency up to 90%
Conditions:All specifications are tested under the room temperature 25u2103,normal input voltage and pure negative normal load.
Input Characteristic
Voltage Range
24VDC(Normal Rated Value):18~36 VDC
48VDC(Normal Rated Value):36~72 VDC
110VDC(Normal Rated Value):66~154 VDC
Output Characteristic
Voltage set-point accuracy……±2%
Line Regulation(main)……±0.5%
Load regulation(main)……±0.5%
Output Current Limiting………………120%(Tye)
Output Current………………………………5~100A for option
Output Voltage………………………………12~48V
Power……………………………………………1000-1500w
General Characteristic
Switching frequency………160-200 KHz
Isolation resistance………200 MΩ
Isolation voltage
Input-output:>1500 VDC
Input-case:>1050 VDC
Output-case:>500 VDC
Environmental Characteristic
Substrate Working Temperature………Industry:-25-+85u2103
Military1:-40-+85u2103
Military2:-55-+85u2103
Storage temperature……………………Industry:-45-+105u2103
Military:-55-+105u2103
Dimensions:288.00*195.00*124.00mm
Protection Features
Input under voltage protection
Output short circuit protection
Input over voltage protection
Output over current protection
Over temperature protection
Model selection
PDE1000-24S24-F
PDE1500-48S24-F
PDE1000-110S48-F
PDE1500-110S110-F
Remark:(1)Output ripple noise(Peak-Peak)is adopted the module power supply test instruction on the page 59-60.
(2)Only typical models are listed.For other models,please determine the power,input voltage and output voltage.
Mechanical Drawing&Pin definition
