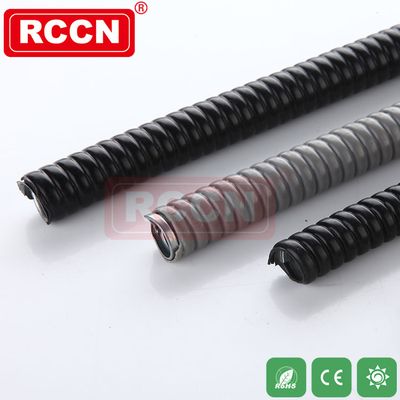

Material:(inner):zinc coated steel, special insulated processed.
(outer):UL approved PVC
Certificates:C
Fireproof class:UL94V-2, low smoking, poison free
Color:black, gray
Work T.:-10u2103 to +80u2103,100u2103 in a short time
Products Characteristics:1.good waterproof,insulated,retension
2.PVC wrapped,PVC is UV and inflammation resistant
3.uneasy to break and construction changing, for its special design
4.smoonth inside, make the wire and cable install easily
Use domain:railway,communicate project,air-dondition,machines.roboticized
equipments,power plant ships and so on
Use way:insert the cables into the conduit, then fix the correct connectors.
Item No. | Trade Sizes | I.D. d | O.D. D | Bending Radius mm±10% | Suitable metal connector NBG | Packing M | ||
Black | Gray | Metric ø | British | |||||
MCR-01B | MCR-01G | 6 | 3/16'' | 6.0±0.3 | 9.2±0.5 | 40 | NBG-01 | 100M |
MCR-02B | MCR-02G | 8 | 5/16'' | 8.0±0.3 | 11.8±0.5 | 45 | NBG-02 | 100M |
MCR-03B | MCR-03G | 10 | 1/4'' | 10.0±0.3 | 14.5±0.5 | 55 | NBG-03 | 100M |
MCR-04B | MCR-04G | 13 | 3/8'' | 12.5±0.3 | 16.8±0.5 | 65 | NBG-04 | 100M |
MCR-05B | MCR-05G | 16 | 1/2'' | 15.5±0.3 | 20.2±0.5 | 85 | NBG-05 | 100M |
MCR-06B | MCR-06G | 20 | 3/4'' | 20.0±0.3 | 25.0±0.5 | 100 | NBG-06 | 50M |
MCR-08B | MCR-08G | 25 | 1'' | 25.0±0.3 | 30.7±0.5 | 120 | NBG-08 | 50M |
MCR-10B | MCR-10G | 32 | 1 1/4'' | 32.0±0.3 | 38.6±0.5 | 150 | NBG-10 | 25M |
MCR-12B | MCR-12G | 38 | 1 1/2'' | 38.0±1.0 | 44.6±1.0 | 180 | NBG-12 | 25M |
MCR-16B | MCR-16G | 51 | 2'' | 51.0±1.0 | 59.0±1.0 | 220 | NBG-16 | 10M |
MCR-20B | MCR-20G | 64 | 2 1/2'' | 64.0±1.5 | 73.5±1.5 | 310 | NBG-20 | 10M |
MCR-24B | MCR-24G | 75 | 3'' | 75.0±2.0 | 83.5±2.0 | 350 | NBG-24 | 10M |
MCR-32B | MCR-32G | 100 | 4'' | 100.0±3.0 | 109.5±3.0 | 410 | NBG-32 | 10M |
MCR-36B | MCR-36G | 125 | 5'' | 125.00±3.0 | 135.5±3.0 | 460 | NBG-36 | 5M |
MCR-38B | MCR-38G | 150 | 6'' | 150.0±4.0 | 160.5±4.0 | 500 | NBG-38 | 5M |
