Product Description
1.Standard:.
2.Trade size:1/2",3/4",1",1-1/4",1-1/2",2".
3.All sizes are furnished in the length of 10" or according to your requirement.
4.Material:Q195(Per-galvanized steel).
5.Surface finish:Galvanized
6.Thread:NPT.
The weld line is very smooth and clean,it well not hurt the wires,safety operation.
Product Feature

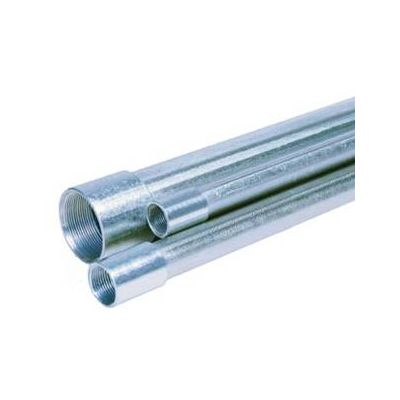

The interior of the IMC tube is zinc-coated to help prevent corrosion as well as metal-to-metal contact. All seams are smoothly welded, and the interior is free of any defects or rough surfaces. This allows for easy and continuous wire pulling.
Product Specification / Models
Size:OUTSIDE x THICKNESS x LENGTHmm
1/2" 20.7x1.98x3050mm;
3/4" 26.1x2.10x3050mm;
1" 32.8x2.35x3050mm;
1-1/4"41.6x2.42x3050mm
1-1/2"47.8x2.54x3050mm;
2" 59.9x2.67x3050mm.
Application / Models
IMC pipe is approved for installation in both indoor and outdoor environments. The pipe can be left exposed or concealed within a wall or other structure. IMC conduit is also approved for hazardous locations and all types of climatic conditions.
Other Information
EMT conduit is manufactured in standard 10-foot lengths. Depending on the application and the number and gauge of wires to be pulled, EMT is available in sizes ranging from 1/2 inch up to 4 inches.
Our HDG EMT conduit size from 1/2" to 2"
