0.6/1kV 0.6/1kV XLPE insulated electrical power cable,19/33kV underground power cable,26/35kV medium

Model Number Power cable

Insulation Material PVC or XLPE

Type Low/medium/high voltage

Application Power Station

Conductor Material Copper or aluminum

Jacket PE,PVC,XLPE

Model Number Power Cable

Conductor Material Copper or aluminum

Application power station

Rated voltage up to 35kv

Jacket PE,PVC,XLPE

Standard BS IEC ASTM DIN

No.cores 1~5 cores for low voltage;1 or 3 cores for high voltage

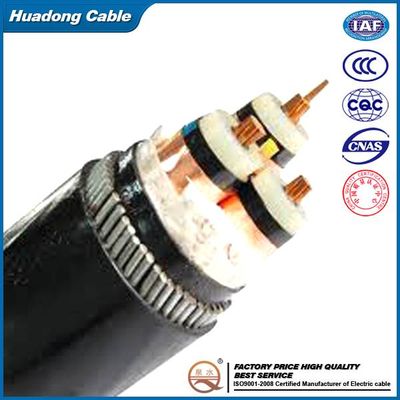

XLPE(Cross-linked polyethylene) insulated electric power cable,aluminum conductor or copper conductor







IEC 60502, IEC 60228, IEC 60332, CE,



Armour, LSZH, Fire-resistant optional

Technical data



Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV



Maximum Conductor Temperature: under normal (90u00b0C), emergency (130u00b0C) or short circuit no more than 5 s (250u00b0C) conditions.



Min. Ambient Temp. 0u00b0C, after installation and only when cable is in a fixed position



Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables



15 x cable O.D for single-core armoured cables



15 x cable O.D for multi-core non-armoured cables



12 x cable O.D for multi-core armoured cables

Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Standards



International: IEC 60502-2, IEC 60228



China: GB/T 12706.2-2008



Other standards such as BS,DIN and ICEA upon request
