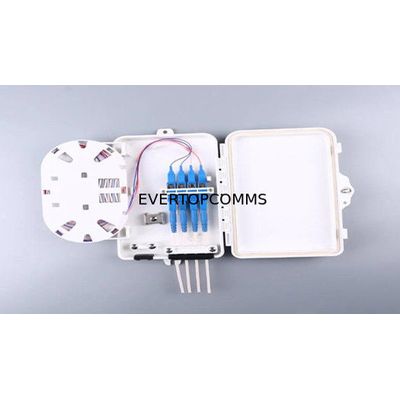

4A Mini FTTH Termination Box For Fiber Single Mode / Duplex Mode Dust Proof
Home
4A Mini FTTH Termination Box For Fiber Single Mode / Duplex Mode Dust Proof

4A Mini FTTH Termination Box For Fiber Single Mode / Duplex Mode Dust Proof

Min. Order: 1
Payment: L/C,T/T,Western union
Minimum Order: 50PCS
Delivery: 5-8working days
Origin: Ningbo,China
Packing: 1pc/paper bag,50 pcs/box
Inspection: -
Samples: Free
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

    Description


       This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.



    Performance index:
    ItemTechnical Data
    Application3.0*2.0 mm drop cable or indoor cable
    Fiber diameter125μm (652 & 657)
    Mode of applicationSingle mode & Duplex mode
    Tensile strength>50N
    End-use temperature-40~+85ºC
    AdaptorSC & FC
    Insertion loss≤0.2db(1310nm & 1550nm)


    Environmental reguirement:

    - Working temprature : -40ºC~+85ºC

    - Relative humidity : ≤85% (+30ºC)

    - Atmospheric pressure : 70Kpa~106Kpa


    Main technical datasheet:

    - Insertion loss : ≤0.2db

    - UPC return loss : ≥50db

    - APC return loss : ≥60db

    - Life of insection and extraction : >1000 times




    Thunder-proo technical datasheet:
    The grounding device is isolated with the cabinet, isloation resistance is less than
    2*104MΩ/500V(DC);
    IR≥2*10 4 MΩ/500V(DC)
    The withstand voltage between grounding device and cabinet is no less than
    3000V(DC)/min, no puncture,
    no flashover; U≥3000V



    Feature:



    1.  with protective door, dustproof

    2.  Applicable to the independent villa of FTTX drop cable project(Pipe cable) and wiring

    3.  Hang on the poles or tube well installations,

    4.  Efficient cable management

    5.  It can be used for general outdoor wiring cable directly



    Application:
    Optical LAN & WAN & CATV
    Testing instruments
    FTTH project & FTTX Deployments
    Optical Signal Distribution
