Product Description

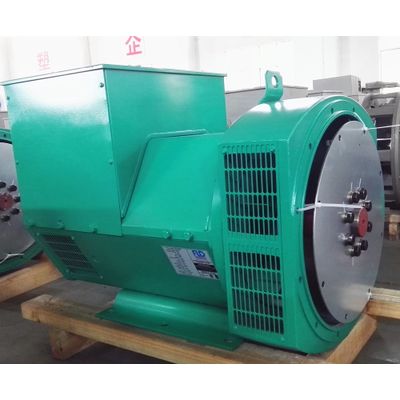

4-Pole Farrand Brushless Alternator Specificationsu00a0
3 phase H-Class Temperature-rise(125u00b0C) u00a0 u00a0Winding 311
Alternator Model
FLD274C
Power
100kva/ 80kw; 117.5kva/ 94kw
Exciter type
Shunt self-excited brushless
Power factor
0.8 lagged
Frequency/ Speed
50Hz/ 1500rpm; 60Hz/ 1800rpm
Characters
4 poles, 1 or 2 bearing
A.V.R Model
SX440
With AVR voltage regulation
u00b11.0%
Insulation Grade
H
Protection Grade
IP22/ IP23
THF/TIF
THFu22642%, TIFu226450
Winding Pitch
2/ 3
Lead Number
4
Certificate
CE, ISO, etc
Warranty
24 months
u00a0
FLD274 series u00a0three phase specifications in prime power
Modelu00a0u00a0 u00a050Hzu00a0u00a0 u00a050Hzu00a0u00a0 u00a060Hzu00a0u00a0 u00a060Hz
Stamford Typeu00a0u00a0 u00a0kvau00a0u00a0 u00a0kwu00a0u00a0 u00a0kvau00a0u00a0 u00a0kw
FLD274Cu00a0u00a0 u00a0100u00a0u00a0 u00a080u00a0u00a0 u00a0117.5u00a0u00a0 u00a094
FLD274Du00a0u00a0 u00a0114u00a0u00a0 u00a091.2u00a0u00a0 u00a0137.5u00a0u00a0 u00a0110
FLD274DLu00a0u00a0 u00a0125u00a0u00a0 u00a0100u00a0u00a0 u00a0150u00a0u00a0 u00a0120
FLD274Eu00a0u00a0 u00a0140u00a0u00a0 u00a0112u00a0u00a0 u00a0167.5u00a0u00a0 u00a0134
FLD274FSu00a0u00a0 u00a0150u00a0u00a0 u00a0120u00a0u00a0 u00a0187.5u00a0u00a0 u00a0150
FLD274Fu00a0u00a0 u00a0160u00a0u00a0 u00a0128u00a0u00a0 u00a0190u00a0u00a0 u00a0152
FLD274Gu00a0u00a0 u00a0175u00a0u00a0 u00a0140u00a0u00a0 u00a0212.5u00a0u00a0 u00a0170
FLD274Hu00a0u00a0 u00a0200u00a0u00a0 u00a0160u00a0u00a0 u00a0245u00a0u00a0 u00a0196
FLD274Ju00a0u00a0 u00a0230u00a0u00a0 u00a0184u00a0u00a0 u00a0281u00a0u00a0 u00a0225
FLD274Ku00a0u00a0 u00a0250u00a0u00a0 u00a0200u00a0u00a0 u00a0300u00a0u00a0 u00a0240
u00a0
FEATURES
Terminal and terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non-drive end. The box is equipped with removable panels.
Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuations of the speed of the engine. Voltage is adjusted via potentiometer of AVR.
INSULATION
Insulation Class H.
All wound components parts are all immersed in varnish twice.
Winding and electric features:
2/3 pitch winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage. Connected to the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp winding abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.
Overload
Short time load rating of up to 150% of the rated current in 2 minutes. The alternators can carry a load of 110% for one hour in six.
Phone interference
THF is less than 2%. TIF is less than 50
Application
u00a0
Farrand alternator fits all different brands of engines, are extensively used as prime or standby power in various applications, such as General industry, Mining, Military, Oilfield, Construction, Telecommunication, Hospital, Engineering Machinery, Building construction, CHP, Marine and other applications.
Our Services
u00a0
WHY CHOSE OUR FARRAND GENERATOR???
u00a0
Here are the reasons
1. Decade of years' experience in manufacturing brushless alternators used for generator& reefer generator
2. Strong QC teams, experienced sales people &skilled workers, professional service
u00a0
3. Always choose good materials.u00a0
1)100% Superior Essex - Manufacture US-China(Essex Magnet Wire (Suzhou) Ltd.)u00a0
2)Silicon steel sheet Wugang 50WW800
u00a0
4. 100% tested & guaranteed before shipment to assure the top quality
u00a0
5. ISO9001:2008, CE certificates
u00a0
6. Competitive in the market on reliable quality
u00a0
7. Fast and on time delivery.
