Product Description

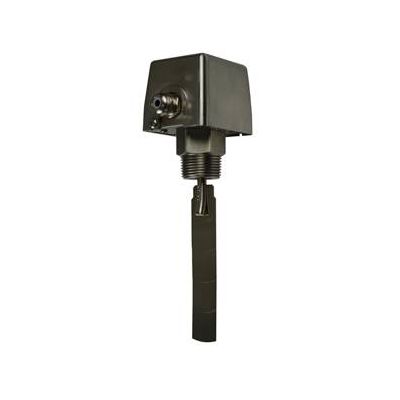

Plug-in installation, mechanical flow switches. The built-in micro trigger switch.
Product Feature
1.Minimal pressure loss, good repeatability, dirt-resistance.
2.Through the knob to achieve accurate switch setting.
3.Hermetic separation of mechanical.
4.At the time of delivery is accompanied by 5 baffle plates, on the large diameter pipeline with low velocity or not full,the user can flexibly use according to the actual situation.
5.The same kind of switch can be used for various pipeline.
Product Specification / Models
FB30 Series
1.Corrugated tube life: 500,000 times
2.Repeatability: u00b12.5% of full scale
3.Connection type: Terminal connection
4.Output: Mechanical switch NO+NC (250VAC,3A)
5.Withstand voltage: 16 bar(40bar optional)
6.Avg pressure loss: 0.08bar(Max. flow)
7.Ambient temp.: -25....80
8.Medium temp: 0....90(-30....350)
9.Interface mode: NPT1" & G1/2Male thread & DN25 flange connection type
10.Protection class: IP54
11.Material: brass (stainless steel
12.Seals: NBR
13.Protection shell: Fire class carbonate polymer&316L stainless steel
Application / Models
It is usually used in heating,air-conditioning,refrigeration, water treatment,water supply,industrial added system. Can control equipment such as: waterpump,burners,compressor,cold water machine,electric valve,alarm equipment,industrial equipment and so on.
