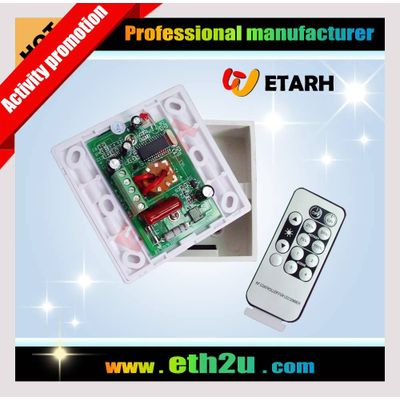

0/1-10V LED dimmer with IR

1.General information



The Infrared dimmer is a standard 0/1-10V intelligent dimmer for LED lighting brightness adjusting, and with manually knob adjusting and IR wireless remote adjusting optional. It is suitable for commercial and household 86-style socket installation; you can install it visibly outside the wall or invisibly inside the wall. It can meet different brightness requirements at different time with the dimmer.



ETH-8008 suitable to control the LED dimming driver and electronic rectifier which based on 0/1-10V dimming signal, to adjust the brightness of the LED lamp or fluorescent lamp,etc.



Through the knob or IR remote control for brightness adjustment, grey scale level 256, it has Scheduled shut down (1-4 hours), brightness hot key and fixed gray output functions.







2.Specifications



1. Supply voltage: AC90-240V 50/60Hz

2. Output : 1 channel

3. Switch current: 1A

4. Dim output current: >30mA

5. Adjust the voltage and current: 10%-90%

6. Dimming range: 0-100%, no frequency glisten

7. Control mode: Manually and IR remote



8. Panel color: white

9. Panel material: PC fuel resistance

10. Angle of rotation: 320



11. Dim voltage: 0-10V

12. Input power can be cut off

13. Scheduled shut down: 1-4 hours

14. Remote distance: 10M

15. No noise, no radiation

16. compatible above 90% led driver which based on standard 0/1-10V dimming signal



17. OEM and ODM is welcome





3.DIMENSIONS



Switch size: L87u00d7W87u00d7H53(mm)

RF Remote size: L59u00d7W30u00d7H11.8(mm)

Package size: L95u00d7W95u00d7H70(mm)

net weigh: 145g

gross weigh: 230g





4.Installation and use instructions

1) The input voltage of this controller should to be AC90V~240V.

2) Never connect two wires directly in case of short circuit.

3) Knob operation:Rotary knob clockwise to increase brightness, knob counterclockwise rotation will decrease the brightness.

Remote control operation:the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver,When dimmer receives an effective signal from the infrared remote control, the light on the upside flickers.
