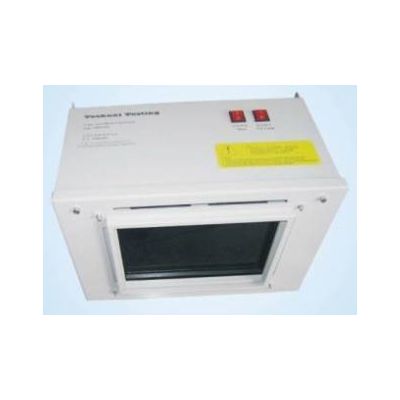

UV-5040.002 Larger Area Black Light Lamp

Ideal for fluorescent penetrant and magnetic particle inspection,parts degreasing inspection,and wash station inspection.



Providing a steady-state intensity above 150,000*10-6(sorry for english character only) w/cm2 at the lamp center

Super Powerful

400W metal halide bulb provides a steady-state intensity of 150,000uw/cm2 at the lamp center measured at a 380mm distance.



Widest Dispersion

Irradiates an area as large as 270*780(mm),producing a steady-state irradiance of not less than 2,000uw/cm2 at 380mm.



illuminated area(at 380mm)

>=14,000 uW/cm approx 100mm*400mm

>=10,000 uW/cm approx 140mm*540mm

>=65,000 uW/cm approx 170mm*680mm

>=2,000 uW/cm approx 270mm*780mm

UV wavelength

steady-state UV-365nm



Housing Dimensions

435L * 300W * 265H (mm)

fluorescent penetrant;

magnetic particle inspection;

parts degreasing inspection;

wash station inspection.
