Ruby Infrared Heat Lamp

Product Introduction

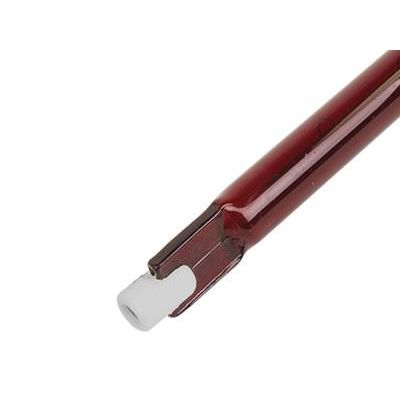

Ruby Lamp utilizes colored quartz tube that surrounds the tungsten filament and bring you high efficiency short wavelength infrared without glare.



As no coating on surface of quartz tube, there is no trouble of peeling and unchangeable low glare over life time is available.



Product Application

1. Paint drying in tunnels and body shops

2. Drying of lacquers and printing inks

3. Infrared Cabins

4. Outdoor and indoor space heating

5. Various industrial heating process



Specification





Part.No. Wattage(W) Volt (V) Base Overall length: L (mm) Heating Length: V (mm) Finish Burning Position Average Life (h)

RL-101 500 220-240 R7S 227.5 162 Ruby Horizontal 5000

RL-102 500 120 R7S 227.5 162 Ruby Horizontal 5000

RL-103 500 220-240 SK15 355 280 Ruby Universal 5000

RL-104 1000 220-240 Sk15 355 280 Ruby Universal 5000

RL-105 1500 220-240 Sk15 355 280 Ruby Universal 5000

RL-106 1500 220-240 X 370 280 Ruby Horizontal 5000

RL-107 2000 220-240 X 370 280 Ruby Horizontal 5000

RL-108 2000 220-240 SK15 400 320 Ruby Universal 5000

RL-109 2000 220-240 R7S 508 416 Ruby Universal 5000

RL-110 2000 220-240 R7S 626 508 Ruby Horizontal 5000

RL-111 2500 220-240 R7S 626 508 Ruby Horizontal 5000

RL-112 2000 400 SK15 512 416 Ruby Horizontal 5000

RL-113 3000 380 SK15 787.5 700 Ruby Universal 5000
