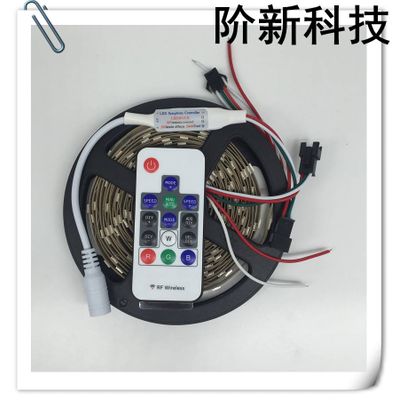

Jercio XT1511-30L-30LED(5050RGB)Bare board waterproof it can replace WS2811 APA102 or SK6812

The lamp strip adopting the world's first built-in IC series lamp driving light emitting various XT 1511 drive IC based plus a 104 capacitors. Driving lamp lamp panel looks very simple and beautiful, and the same XT1511 drive IC is a performance very stable brightness is very high. It is made of beads, high brightness, stable performance, surface appearance, concise, convenient production, low cost, so

Low barrier... Is the ideal choice for lighting lighting outdoor lighting design.

30 30 light water symphony, meteors, Happy Valley lamp 30 built-in IC full-color lamp of spot SMD LED 5050 RGB lamp XT1511 symphony of lights in a lamp 30 happy water led full-color digital soft lamp strips

1, product type: XT1511 color light one meter 30 lights 30;

2, light source: SMD 5050 LED;

3, plate: FPCB;

4: Taiwan epistar chip, chip, and other chips in Taiwan;

5, IC model: XT 1511, (1 m 30 IC, 1 IC 1 LED control lamp);

6, gray level: 256, (1 m 30 pixels);

7, LED number: 30 lights / meters, every 1 lights for a group, you can cut;



8, light emitting angle: 120 degrees;

9, light emitting color: can be adjusted by the controller, white, red, yellow, blue, green, and so on;

10, standard operating voltage: 5V DC;

11, power: 18W + 10% / m;

12, waterproof grade: waterproof, epoxy (IP65), (IP67), casing casing solid glue (IP68) etc.;

13, FPCB board size: width: 10 mm, thickness: 2 oz;

14, FPCB color: white, yellow, black (in addition to white outside the need to be customized);

15, packing: 5 m / roll, light bar back 3M adhesive, electrostatic bag packaging;

1, Indoor installation: LED lights for indoor installation is relatively simple, because there is no need to exposed to wind and rain. When the installation can be directly torn off the back of the 3M double-sided adhesive sticker on the surface of the sticker, and then the lamp is fixed in the need to install a flat on the good. If you encounter a corner or lamp strip is too short, the LED lamp belt in each group with scissors identification of tangent at any cut or welding used alone.

2, outdoor installation: installation of outdoor due to withstand wind and rain, not the 3M glue fixed, so the outdoors are often erected using the card slot in a fixed way and need to cut and connect place, the installation method and indoor, just need to additionally equipped with waterproof glue, so as to consolidate the connection point of the waterproof effect.

3, power connection method: Symphony LED lamp with voltage for DC DC 5V, so need to use the switch power supply power supply according to the LED lamp with the power and link length to set.

4, the controller is connected: LED marquee and RGB lights with to achieve the effect of changes on the controller, and each controller control distance is not the same, generally speaking, simple controller control distance is 10 to 15 meters, the controller remote control distance of 15 to 20 meters, the longest can control to 30 meters distance. If the LED lamp with a longer distance, and the controller can not control so long lamp, then you need to use a power amplifier to tap.

after-sale service:

1, the product warranty period of 1 years; warranty replacement repair, but the damage does not include man-made damage or work overload.

2, truly within 1000 hours of the 3% lumen, the service life 8 000 -10 000 hours, please compare the quality of similar products in the market.

3, according to the number of customer requirements and requirements made of arbitrary length beads, welcome to inquire!
