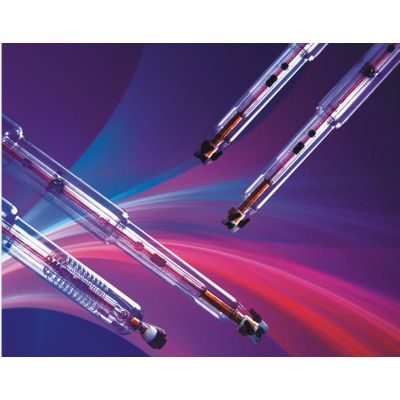

SERIES 8 CO2 LASER TUBES FOR INDUSTRY
FEATURES OF SERIES
A. Unique shape structure design with 5 layers. Broken the traditional design modes, the output power will be not affected due to the higher water temperature even if it's up to 122'F-140'F.
B.Unique design at the cathode, assures the long life time in various environments.
C.With unique double metal rings design, it makes the beam quality more stable and improves the machining and cutting speed remarkably.
D.The special anti-dust design protects the lens of output side effectively in bad working environments, which makes the life time longer.
E.With many natonal-level patents, tubes quality is perfect with high cost-performance.
LIFE SPAN:over 10000 hours
WARRANTY PERIOD:300 days
PRODUCT TECHNICAL PARAMETER
Type | Full Length (mm) | Rated Power (W)* | Max. Power (W)* | Outer Diameter (mm) | Catalyst | Testing Current (mA) | Instability (%) |
1800Q8 | 1850±30 | 160 | 190 | 110/80/60 | Yes | 30 | ≤5 |
2000A8 | 2050±30 | 180 | 210 | 110/80/60 | Yes | 30 | ≤5 |
2200V8 | 2250±30 | 200 | 230 | 110/80/60 | Yes | 30 | ≤5 |
PRODUCTS DIRECTION
A.We can make the tubes as customers' requirement specially.
B.Tolerance of outer diameter is ±2mm.
C.In ouder to a long-life us, the current should be controlled under 26mA and the maximum operating current should not exceed 30mA.
D.We reserve the rights to modify the catalogue without notice previously,please inquiry us directly for update information.
