Hot sale and good price laser steel cutting machine laser cutting metal machine

Hot sale and good price laser steel cutting machine laser cutting metal machine



Product Description

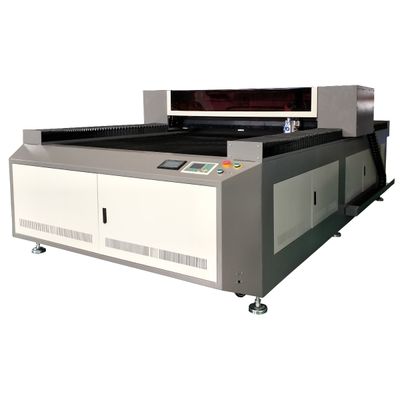

MC 1325 is a mixing cutting machine, widely used in metal and nonmetal cutting and engraving.
Japan Yaskawa Servo motor to ensure the high precision, running stable and long-operation.
Special follow up laser cutting head, which can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision.
RDCAD/CAM Laser Work control system with English Color screen display and compatible with USB, PC and various memeries.
HIWIN square rail with high precision and stable of cutting.
The weight of the cutting machine is about 1.2tons, much heavier than others, to reduce the precision error caused by machine vibration.
Low running cost which is about 5KVA/hour.

Product Feature

Model MC-1325
Working size 1300*2500mm
Laser type Sealed CO2 laser tube(weegiant Brand)
Laser power 150W/180W Weegiant laser tube
Cutting speed 0-4,000mm/min due to different material
Position accuracy ±0.02mm
Work platform Stainless sheet and knife table
Operating temperature 0-45 degree
Minimum shaping character English 1*1mm
Graphic format supported BMP, PLT, DST, DXF, and AI
Driving system Stepper motor
Cooling mode Industrial Chiller
Auxiliary equipment Exhaust-fan, air-exhaust pipe
Controlling software Off-computer controlling system
Compatible software Coreldraw AutoCAD Photoshop
Working voltage AC110-220V ±10%/10A,50-60HZ
Power <2000W
Packing Standard Plywood
Weight 1000KGS

Product Specification / Models

Model MC-1325
Working size 1300*2500mm
Laser type Sealed CO2 laser tube(weegiant Brand)
Laser power 150W/180W Weegiant laser tube
Cutting speed 0-4,000mm/min due to different material
Position accuracy ±0.02mm
Work platform Stainless sheet and knife table
Operating temperature 0-45 degree
Minimum shaping character English 1*1mm
Graphic format supported BMP, PLT, DST, DXF, and AI
Driving system Stepper motor
Cooling mode Industrial Chiller
Auxiliary equipment Exhaust-fan, air-exhaust pipe
Controlling software Off-computer controlling system
Compatible software Coreldraw AutoCAD Photoshop
Working voltage AC110-220V ±10%/10A,50-60HZ
Power <2000W
Packing Standard Plywood
Weight 1000KGS

Application / Models

1.Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.

2. Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.

3. Model Industry: sand table constructtion model,plane model etc.

4. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.

5. leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.

6. other industry : stainless steel, carbon steel, glass,crystal engraving,paper/greeting card cutting etc.

Other Information

Warranty & after-sales services

1). Guarantee for the whole machine: 2 years

2). Providing professional service to customers, any call for technical help will be solved in 24 hours

3). Free training, free maintenance and free technical support within warranty period

4). We supply life-long free service in technical upgrading.
