Intelligent dehumidifier for cabinet

SDC-8000 intelligent dehumidifier device adopts semiconductor cooling dehumidify mode, under the effect of the fan, initiative make the moist air which in the confined spaces inhaled to the dehumidified air-duct, after through the semiconductor cooling mechanism, the moisture of the air condenses into the water, and then discharge from cabinet through the drain line, can achieve a good dehumidification effect. By reducing the moisture content of the air, the relative humidity and absolute humidity decreases at the same time while hardly increasing the temperature ,will not bring any negative affect caused by the temperature difference, radically eliminated and reduced the occurrence of accidents ,it also will not speed up the aging of the components inside the cabinet and the cabinet itself due to the high temperatures, smart dehumidifier device changed the passive prevent condensation mode to an active guidance condensation mode, effectively prevent the aging of the equipment inside the cabinet, reducing the dielectric strength, the second terminal breakdown, material mildew ,rust steel structure and other security risks, ensure the grid's safe operation.

1. Small size, light weight, simple and easy to install;

2. Automatic operation and manual dehumidification function switching, temperature start value and dehumidification start value is adjustable;

3. Dehumidification duct actively condensate ,exhaust gas, heating and lower humidity, effectively achieved the comprehensive treatment of the electrical cabinet confined space's dehumidifier moisture.

4. Humidity and temperature sensor is real-time sampling during 24 hour, and will automatically incorporated condensate,when exceeds the setting start value.

5. Humidity and temperature setting with memory function, will not disappear by power on and power off ;

6. Fault display function, can quickly find out the point of failure to ensure the normal operation;

7. Using special moisture-proof element, the shell is made of aluminum alloy structure to ensure the normal work in a wet environment;

Working power supply:AC220V

Heating power: 50~500W

Working power:120W

Humidity measuring range:20%~98%RH

Dehumidify start value: 45%~98%RH

(Default setting65%RH)

Humidity measuring accuracy: u00b13%RH

Display method: Double 3-digit display

Shell material: Aluminum Alloy

Dehumidifying efficiency: 450ml/day

(under the working conditions of 60W 35 RH=80% )

Dehumidify temperature: 5~45 Degrees Celsius

Working temperature: -25~85 Degrees Celsius

Temperature measuring range:-25~125 Degrees Celsius

Temperature start value: 1~55 Degrees Celsius(Default setting )

Temperature measuring accuracy: u00b10.5

Display Resolution: 0.1

Dimensions: 115*67*210mm

Drain line: Silica gel D10mm ,L1.5m

- High voltage switch cabinet, substation.

- Low voltage box

- Low-voltage AC power distributing cabinet

- Low voltage cabinet.

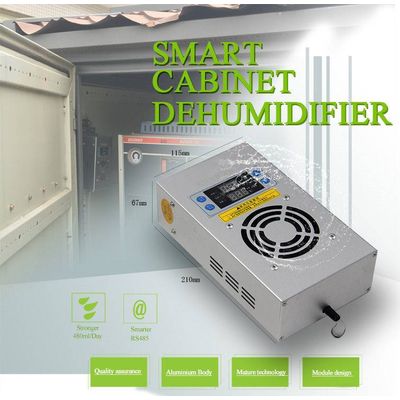

1. Smart function with RS485 interface

2. Smaller size 115*67*210mm

3. Stonger dehumidifier capacity 450mL/Day

4. LED Display

5. Can be customized
