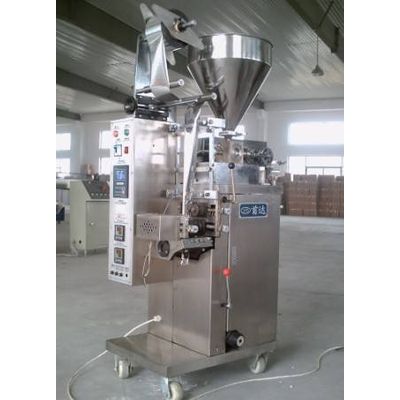

Automatic liquid packaging machine

The machine adopts compound plastic film (PE/PET nylon/PET) as packing material. It can finish the whole processes of bag forming, filling with fixed quantity, date marking, cutting off and metering with bag-forming mode of back-sealing or wide sealing. The ultraviolet ray lamp inside machine can realize sterilization. Stepless speed regulation is available to determine bag's length and filling with fixed packaging of liquid, adhesive particle or semi-adhesive particle.

1) All the work of bag making, measuring, material filling, sealing, counting and code printing can be done automatically.

2) Photoelectric and tracing system or PLC system can be provided with your specific requirements.

3) The PLC controller has the advantages such as setting the length of the bag, the output alarm and the speed and quantity with buttons.

4) code-printing machine can be equipped to automatically print 1-3 lines of letter, like number and date.

5) Suitable packing material: PET/AL plating/PE, PET/PP, BOPP film, nylon compound

film and other materials can be heat sealed.

Model: SD-1000 SD-500

Sealing mode:Central side,Three side,central side

Packaging speed:10-30bags/min 20-60bags/min

Bag size:L: 100-310mm L: 80-180mm

W: 70-210mm W: 50-140mm

Filling quantity: 100-1000ml 10-300ml

Power: 220V 50HZ 1.8KW 220V 50HZ 1.8KW

Machine weight: 350kg 300kg

Machine dimension:1200u00d7900u00d72000mm 1000u00d7800u00d72000mm

Film ModeSingle film, Single film

complex film, complex film

Food, Beverage, Commodity

After-sales service

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.



Guarantee of quality

The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.



Installation and Debugging

The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer's side(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
