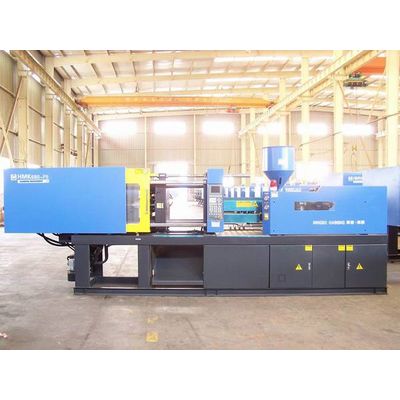

Plastic Injection Modling Machine

Product Description

Standard equipment:
1) Double cylinder balancing injections
2) High-torque oil-motor preplasticizing
3) Five pivots minus relief angle, double toggles, machine hinge
mold locking
4) Cabinet-type holder integrates the mold plate
5) Oil motor driven gear mold adjusting
6) Storage-type grease lubricating
7) Pressure and flow whole-proportion running
8) High-performance, low-noise oil pump
9) Multi-step pressure and speed adjusting
10) High-precision position linear transducer
11) Digital memory for mold group
Injection unit:

1) Four injection pressures and speeds with three additional
pressures and speeds
2) Suck back function
3) Cold start protection
4) Pre-suck back function
5) Linear displacement transducer accurately monitor injection
position, providing optimum. injection accuracy and control
6) Temperature control
7) Heating Status indication
Clamping unit:
1) Three clamp close and open pressures and speeds
2) Mold protection function
3) Hydraulic ejector stroke controlled by transducer
4) Automatic hydraulic die-height adjustment driven by planetary
gears system
5) Adjustable support under moving platen
6) Automatic high pressure toggle lubrication with low oil level alarm
7) Mechanical, electrical and hydraulic safety interlock devices
8) Linear displacement transducer controls clamping position

Product Feature

Plastic Injection Machine Technical Specification

Injection Unit HMK 680
Screw A Screw B Screw C
Screw Diameter mm 32 35 38
Screw L/D Ratio L/ D 21.3 19.5 18
Shot Volume ( theoretical ) cm 3 100 120 142
Injection Weight ( ps ) g 93 112 131
Injection Pressure Mpa 230 192 162
Screw Speed rpm 0 ~ 200
Clamping Unit
Clamp Force 680
Toggle Stroke 285
Space between Tie Bar ( W * H ) 305 * 305
Max Mould Height 330
Min Mould Height 100
Ejector Stroke 60
Ejector Tonnage 27
Ejector Numbers 5

Others

Max Pump Pressure 16
Pump Motor Power 9 ( 11 )
Heater Power 6.2
Machine Dimensions ( L * W * H )
3.6 * 1.03 * 1.7
Machine Weight 2.9
Hopper Capacity 25
Oil Tank Capacity 180


Product Specification / Models

1) Independent core in / out pressure and speed
2) Hydraulic unscrewing sequence
3) Hydraulic oil high temperature alarm
4) System pressure gauge
5) Shot counter and reset function
6) Malfunction alarm light
7) Self-diagnostic function
8) Emergency stop buttons placed both front and rear of the machine

Application / Models

Plastic Bottle Preform Injection
