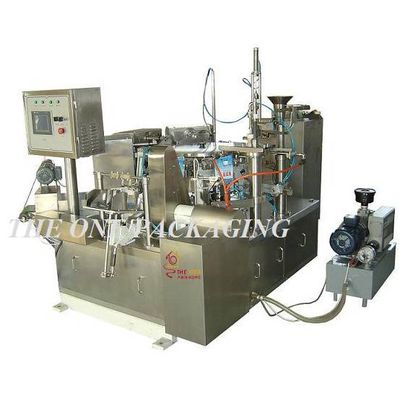

TOSFC-8-4 Standing Pouch Filler and Capper

Description:



1. Mechanics bag sealing--bag opening--printing--jolt--embossing--finished product outputting



2. Touch screen control panels, no operator's intervention, fully automatically control, PLC executive machienry, and movement reliability, easy to operate, no environment pollution.



3. The mainframe is adjusted by exported frequency conversion.



4. The packaging bags are good looking, qualified, for it has printed and heat-sealed for twice.



5. The machine is designed with unitary service position, so the mouth of the bottle is unruffled.



6. The part, which come into contact with filling materials are made of stainless steels.



7. It is clean, anti-corrosion, durability. It is provided with automatic metering machine according to the requirement of the filling materials, automatic screw bolt filling machine, intelligent compound balance and other products, which are suited for metering automatically to compound a line.

Main technical parameters:



1. Numbers of machine work position: 8



2. Wrapper: self-sustaining bag, reticule, zip bag, four sides sealing, three sides sealing, paper bag.



3. Size of bag: W:100mm~210mm; L:320mm



4. Weight range: 20g-1000g



5. Production capacity: 600-2000bags/hour



6. Power: 5kw



7. Machine weight: 900kg



8. Machine dimension (L*W*H): 2500mm*1800mm*1800mm
