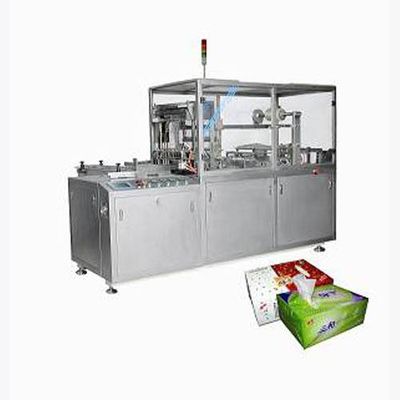

Paper Tissue Packing Machine (TMP-DZ)

The Paper Tissue Packing Machine is designed and constructed to pack or wrap paper tissue. The working regular is feeding tissue paper into former and wrapping a plastic film outside of the tissues. The packing type can save many cost on packaging material than traditional box package; but can provide same beautiful packaging apprearance. It suit to square shape tissue packaging. The machine is save many human source, and fast speed.

1. PLC control the working proccess.

2. Touch screem show the technical data.

3. Serve-motor control the film feeding, let the film feeding be precision.

4. Electric eye to track the printing mark, color film can be used on the machine.

5.304# SUS as the main body of the machine.

6. Compact structure, convenient operation. complete safety protection.

Model: TMP-300ZF

Packaging material: BOPP film, PVC film

Production capacity: 5-30 packs/min.

Packaging size: L(50-300) u00d7W(40-220) u00d7H(10-90)mm

Power supply: AC380V 50Hz, 3phase 6.5Kw

Air pressure: 0.6 MPa

Air consumption: 400L/min

Weight: 750Kg

Overall dimension (LxWxH, mm):

2300u00d7910u00d71850

Dimension of input table (LxWxH, mm)

1650u00d7320u00d7930

To wrap square shape, facial tissue, napkin, handchief and so on.

The driving system is pneumatic parts. The design make the maintaince to be close to zero.
