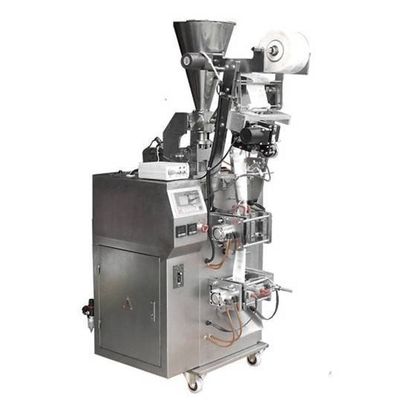

Liquid 4 side seal Packing Machine

Product Description

Characteristics:



This machine has adopted a PLC programmable controller and matches with Chinese display screen. Thus, it's easy to operate, convenient in adjustment and super automatic.



The main body of the machine is full stainless steel pump. Measured with plunger pump, this machine can be adjusted at will in the rated measuring range. It can fill the liquid and sticky materials, and finish the functions such as bag making, measuring, filling, sealing, cutting, counting, lot number printing.



The photoelectric tracking system and two-way compensate function are adopted, ensure the automatic correcting of the double face printing design on the packing bag. It can setup the pouch length directly at the tender side at the same time, and do step-less adjustment to the pouch length at the pouch length range.

Technical Pameter:

Pouch length: 50-120mm (adjustable)



Pouch width: 15-80mm ( change formers)



Max packing speed: 30-60bags/min



Packing dose: 5-25ml, 25-50ml/bag



Sealing way:4 side seal

Electric source: 220V 50Hz (do as customeru2019s request)

Total power: 1.1KW



G. W.190kgs

Wooden Package size: 800L*700W*1550H mm

Sample:

Usage:



It is suitable to pack paste materials in the fields of food industry, pharmacy industry, and daily chemical. Such as peanut butter, ketchup, bee honey, shampoo and so on.
