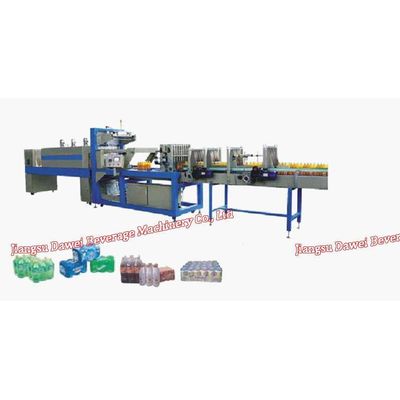

linear type high speed PE film shrink wrapping machine

It applies to beverages, dairy products, and mineral water in the single-row or multi-row case of heat shrinkable film packaging. The introduction of Germany advanced technology aircraft, in accordance with the European precision Technology, selection of electrical components are well-known brands ensure that the stability of the whole machine.

1).this equipment adopts advance structure for hot sealing and cutting.



2).Principal part of sealing and cutting pushes by air cylinder . There are guide pillar at both ends to assure cutting and sealing is table and reliable.



3).It has Special protection function. When there is barrier at sealing and cutting place, the equipment will be under protection. Meantime, it will give off alarm to avoid the packed material damaged.



4).Conveying trough adopts plastic steel mesh chain . Conveying is stable and long use is without distortion.



5).Package dividing mechanism divides package accurately and smoothly. It is easy to adjustment.



6).Heating part is made by superior stainless steel with cooling fin. Thermal emission is steady and uniform. and it has long using life.



7).it sets PID temperature controller. The PID temperature controller has accurate temperature control and save energy.



8).Hot shrink wrapping machine adopts hot air diversion circulating system. Air current is adjustable and thermal energy can recover naturally. Special furnace construction not only comes up to good packing effect but also comes up to best energy- saving function.



9). Special insulation construction not only comes up to energy efficiency benefit but also assures operational safety. All of these assure good high speed shrink wrapping effect as well as working stabilization.



10) it adopts automatic control system, productive process is stable and reliable, it can works long hours without stop.

1).Electric power supply:380V/50HZ, 3-phase 5-wire system



2).Installed power:Approx 28 KW



3).Working air pressure:0.6Mpa



4).Air consumption: 25m3/H



5).Packing material:PE Film, PVC film



6).width of packing film:Max .600mm



7).Thickness of packing film:0.03-0.10 mm



8). Packing way:Two-side sealing and two -end opening



9).Packing speed:15-28 Package /min



10).Applied bottle material:Glass bottle, easy can ,PET bottle and so on



11)Applied bottleDiameter:60-90mm height≤330mm



12).Dimensions (Lu00d7Wu00d7H):10000u00d71100u00d71900mm



13).Total weight:1500kg

Remark: this equipment need one set of air compressor which purchases by buyer himself as well as the PE shrinking film.
