plastic thermal forming machine

Product main feature

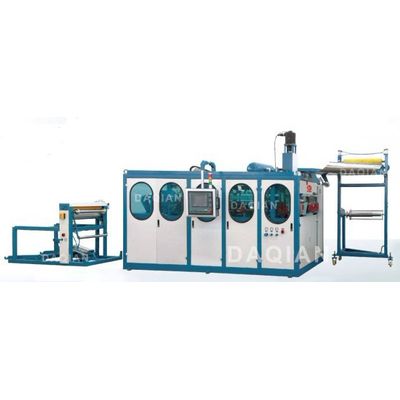

DQ-660A type plastic thermal forming machine is a set of international advanced molding technology,using machines, electricity, gas integration design,microcomputer programmable controller ( PLC ) control, man-machine interface dialogue operation, heat conductive oil cylinder type preheating, the chain of transmission of sheet feeding, tunnel type heating, cam type operation, servo motor tension pressure, positive pressure forming, the die shear.The preheating, feeding, heating, forming, cutting edge, stretching, rolling a one-time completion of efficient automatic plastic sheet forming device.



It is used for forming PP,PS,HIPS,PVC,PET plastic sheet,widely used to produce various kinds of plastic cups,boxes,containers and other plastic wares,such as ice-cream cups,milk cups,candy boxes and fast food boxes etc.



Product details and parameters:



1,max.forming area:250u00d7580mm



2,max.forming depth:160mm



3,max.width rang of sheet:300-660mm



4,thickness range of sheet:0.3-2.0mm



5,max.sheet roller diameter:800mm



6,air pressure:0.7MPa



7,water consumption:100L/min



8,air consumption:2000liters/min



9,manufacturing speed:10-35cycles/min



10,power:three phase four line AC308Vu00b110%



11,heating motor power:68kw



12,main motor power:7.5kw



13,feeding motor power:3.5kw



14,pre-drawing motor power:7.0kw



15,rewinding motor power:0.37kw



16,weight:6000kg
