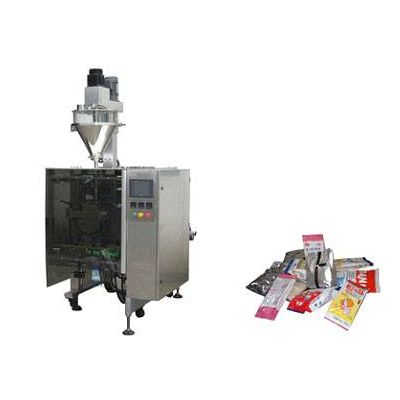

KAF-420 AUTOMATIC VERTICAL PACKING MACHINE

Metering Mode: constant feed screw rotation filling (or screw rotation filling traced by weighing feedback)

Bag Size: 65-250mm wide and 70-400mm long

Filling Weight: 250g-1000g, 1000g-5000g

Filling Accuracy: 1%

Production capacity: max. 45 bags/min

Total Power: 6kw

air pressure: 6-8kg/cm2

Total Weight: 950kg

Overall Dimensions: 1500X1500X2600mm



Brief Introduction:

This machine can complete the work like bag making, measuring, filling, nitrogen filling, coding and bag cutting etc. It is applicable to pack the powder materials such as the mil powder, rice flour, corn, washing powder, glucose and additive etc. This machine inosculates the latest technology idea in 21 century, with more logical design, simpler and solider. It can automatically complete the work like feeding, measuring, filling and waste discharge and applicable to pack the powder materials such as the milk powder, monosodium glutamate, solid drink, glucose and rice flour etc.

1. Modular design of program, PLC control system. It can switch the products quickly by the program and all the parameters can be stored.

2. Double-door structure, complete transparence. All the parts can be seen clearly, easy for maintenance.

3. Unique design to avoid the inferior products with air leakage caused by the sealing drape and loose sealing.

4. Adopt the advanced design like double rolling feeding, engineering plastic forming machine and pneumatically actuated brake mechanism of the packing material roll, which let the machine more laconic, solid and can secure the production continuity.
