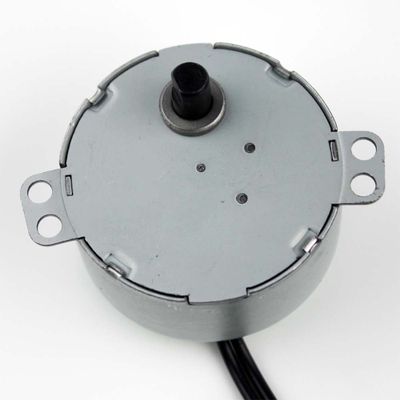

4W AC Synchronous Motor for Electric Fireplace (UL TUV)

Product Description

Product  Description

Applications:
1. Electric fan
2. Heater
3. Laminator
4. Healthful instrument
5. Video games
6. Spotlights
7. Air Conditioner
8. Other
rated vol. 12 24 100 110 120 220 240

VAC
frequency 50/60 Hz
rotation CW,CCW,CW/CCW
speed 1/1.2 2/2.5 2.5/3 3.3/4 4.2/5 5/6 7.5/9 8.3/10 10/12 RPM
20/34 30/36 60/72 83/100




torque 16.0 10.0 9.5 9.0 6.0 5.4 4.5 Kgf-cm
2.2 1.5 0.75 0.5




frictional torque 9-12 Kgf-cm
number of poles 8 pole
input power /4.0 W
isolation vol. AC 1500V-1min Cut-Off Current :10mA
insulation class B Class
